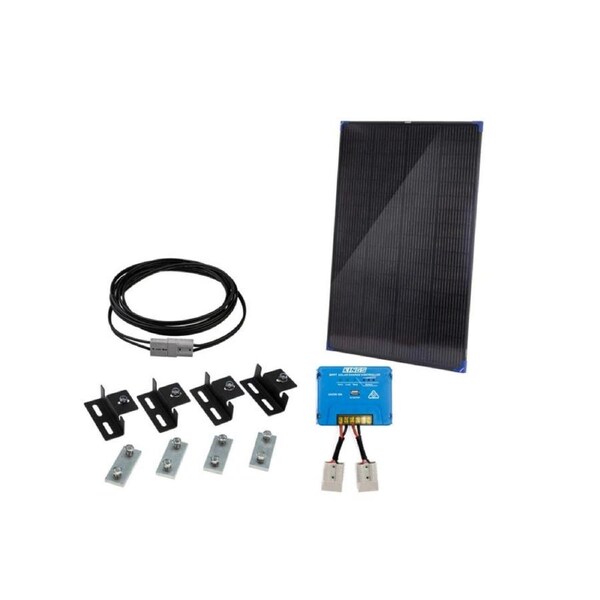

Kings 200W Fixed Glass Solar Panel + 6m Lead +Black Brackets +20A MPPT Regulator
• The perfect partner for your portable solar blankets or panels, the 6 metre cable length allowing you to camp in the cool shade and still set up your solar in full sun. Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop. The Anderson-compatible quick connect plugs are rated for up to 50A of current and make setting up camp quick and easy.
• Charge your batteries quickly and efficiently with the Adventure Kings 20A MPPT Solar Controller. Rated for up to 50V input it's suitable for both 12 and 24V systems. Connecting and using the Adventure Kings 20A MPPT is easy thanks to the two included Quick Connect Plugs. LARGE ALLOY HEAT SINK to Keep the internal electronics and microcomputer cool even in tough conditions!
• Mount your Kings Fixed Solar Panel to your roof rack or any flat surface with ease using the Black Solar Panel Mounting Brackets Kit. Raises the solar panel approx. Raises panel 20mm off the top of the surface to allow airflow underneath to keep your panel cool on hot days. Folded Stainless Steel with Black Finish.
Kings 200W Fixed Solar Panel | Up to 16.67A at 12V | Grade A cells
Output 200W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 21.85V
ISC (Short Circuit Current) 11.25A
VMP (Maximum Power Voltage) 18.83V
IMP (Maximum Power Current) 10.65A
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style)
Dimensions 87.5 x 127.8 x 2cm
Weight 11.6 kg
Warranty 2 Years
KINGS BLACK SOLAR PANEL MOUNT BRACKETS
Material Folded Stainless Steel
Hardware Stainless Steel
Weight 800gm
Warranty 1 Year
KINGS 6M SOLAR LEAD
2.5MM2 COPPER
Conductor Material Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Connector - Copper
Maximum Rated Voltage 300V
MPPT Regulator
• Up to 20Amps multi-stage Charging Capacity for Up To 300W of Solar
• For 4WDs, Caravans, Motorhomes & Off-Grid 12v Setups
Specifications:
• Regulator Type: Maximum Power Point Tracking
• Dimensions: 131×99.5×29.5(mm)（L×W×H）
• Regulator current rating: 20A charge / discharge
• Regulator Voltage: Suitable for 12V or 24V systems (automatic)
• Maximum Regulator Voltage input: 50V
• No-load current (standby current): <10mA
• Safety: Overload & short circuit protection ≥1.5x rated current
• USB output: 5V 1A
