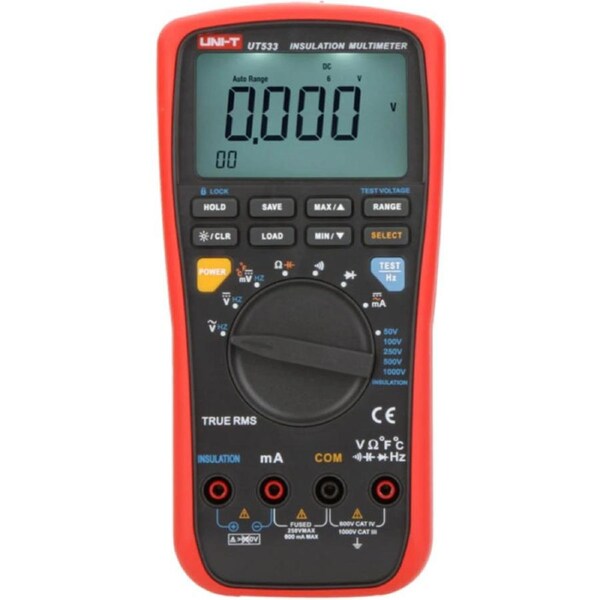

UNI-T Insulation True Rms Multimeter Auto Ranging Resistance Temp

This battery-powered, true RMS insulation multimeter with6000 count display can measure or test the following:

• AC/DC voltage and current
• Resistance
• Voltage and current frequency
• Diode
• Continuity
• Capacitance
• Temperature
• Insulation testing

What is in the box?

• UT533 x 1pc
• Manual x 1pc
• Test lead x 1 pair
• Short lead x 1 pair
• Alligator clip x 1 pair
• K Type thermocouple x 1pc
• AA Battery x 6pcs
• Carry bag x 1pc

Specifications:

Electrical Specifications

Accuracy: (a % of rdg + b digits), guarantee for 1 year
Operating Temperature: 23oC 5oC
Relative humidity: < 75%

AC Voltage Measurement

Remarks:

• Input Impedance: 10MQ
• Displays effective value of sine wave
• Frequency Response: 50Hz-1kHz

DC Voltage Measurement

Remark:

• Input Impedance: 10MOhm

DC Millivolts Measurement

Remark:

• Input Impedance: 4000MOhm

AC Current Measurement

Remark:

• Displays True RMS value
• Frequency Response 50Hz - 1KHz

DC Current Measurement

Ohms Measurement

Capacitance Measurement

Diode Test:

• Resolution: 1mV
• Input Protection: 500Vp
• Open circuit voltage: around 3V
• Display approximate forward voltage ...
