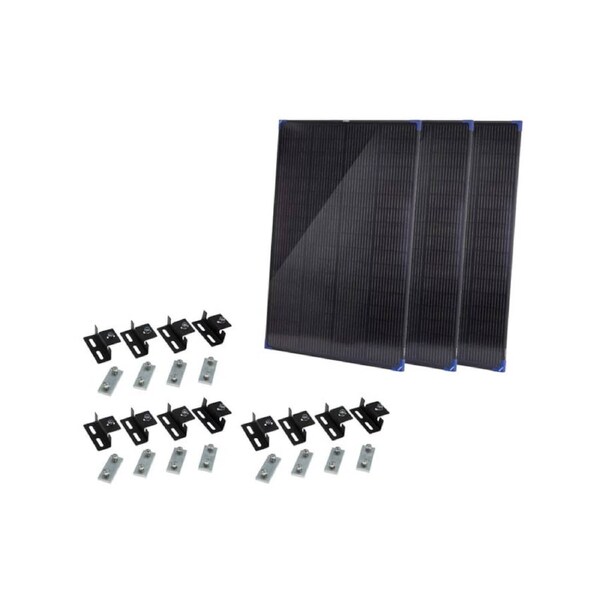

3x Kings 200W Fixed Glass Panel Tempered Upto 16.67A at 12V + 3x Black Brackets
• Mount your Kings Fixed Solar Panel to your roof rack or any flat surface with ease using the Black Solar Panel Mounting Brackets Kit. Raises the solar panel approx. Raises panel 20mm off the top of the surface to allow airflow underneath to keep your panel cool on hot days. Folded Stainless Steel with Black Finish.
KINGS 200W FIXED SOLAR PANEL
Up to 16.67A of charge at 12V | Grade A cells | Tempered glass
Output 200W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 21.85V
ISC (Short Circuit Current) 11.25A
VMP (Maximum Power Voltage) 18.83V
IMP (Maximum Power Current) 10.65A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.39%/°C
Pmax Temperature Coefficient -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Dimensions 87.5 x 127.8 x 2cm
Weight 11.6 kg
Warranty 2 Years
SKU AKSR-FX200W_02
KINGS BLACK SOLAR PANEL MOUNT BRACKETS
Suits Adventure Kings Fixed Solar Panels | Mounting Hardware Incl. | Premium Black Finish
Mount your Adventure Kings Fixed Solar Panel to your roof rack or any flat surface with ease and security using the Adventure Kings Black Solar Panel Mounting Brackets Kit! Crafted from durable premium black finish and featuring threaded alloy blocks, these brackets offer a strong and tidy solution.
LOW PROFILE BUT ALLOWS AIR FLOW
Raises the solar panel approx. 20mm off the top of the surface to allow airflow underneath to keep your panel cool on hot days.
Bracket Material Folded Stainless Steel with Black Finish
Mounting Hardware Stainless Steel
Weight (four brackets combined) 800gm
Warranty 1 Year
