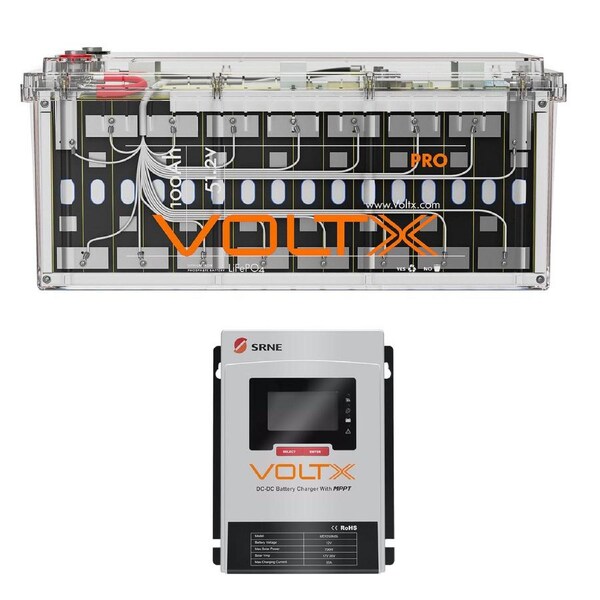

VoltX 48V 100Ah Lithium Battery + 50A DC Charger Kit - 5120Wh Off-Grid Power System
- Brand: VoltX
- Nominal Voltage: 51.2V
- Nominal Capacity: 100Ah
- Rated Energy: 5120Wh
- Approx Life Cycles: 4000
- Battery Manage System: 100A
- Standard Charging Current: 50A
- Max. Charging Current: 100A
- Standard Discharge Current: 100A
- Max. Continuous Discharge Current: 100A
- Max. Discharge Current 5 sec: 200A
- Charger: 57.6V/50A
- Charging Voltage: 54.4-55.2V
- Absorption Voltage: 57.6V
- Float Voltage: 55.2V
- Overcharge Protection: 58.4V
- Overcharge Recovery: 56.8V
- Overdischarge Protection: 40V
- Overdischarge Recovery: 42.4V
- Charge Temperature : 0°C to 45°C
- Discharge Temperature : -20°C to 60°C
- Storage Temperature: -5°C to 35℃
- Charge Method: CC/CV
- Battery Cells: Prismatic
- Cell Grouping: 16S1P
- Parallel Connection: 4
- Series Connection: 1
- Case Material: ABS Plastic
- Battery Type: LiFePO4 Lithium Battery
- Battery Model: Pro 100Ah
- Certifications: CE/UN38.3
- Warranty in Years: 5
- Product Size: L522 x W238 x H223mm
- Package Size: L595 x W310x H303mm
- Net Weight: 37.7kg
- Gross Weight: 39.4kg
- 1x VoltX 48V 100Ah Lithium Battery
- 2x Terminal Bolts M8*16
- 2x Insulating Covers
- 2x Screw Spring Washer
- 4x Screw Washers
- 1x User Manual
Product 2: 12V 50A SRNE VoltX DC to DC MPPT LiFePO4 Battery Charger
- Model: MD1250N05
- Backup Battery System Voltage: 12V
- Backup Battery Voltage Range: 9~16V DC
- Backup Battery Type: Sealed Battery, Gel Battery, Vented Battery, Lithium Iron Phosphate Battery, User-defined Battery
- Rated Charging Current: 50A
- Maximum PV Input Voltage: 55V DC
- Max. power point voltage range: 17~36V
- Maximum PV Input Current: 45A
- Solar Panel Charging Mode: Buck MPPT
- MPPT Efficiency:>99%
- PV input power is recommended: 700W
- Generator (Starter Battery) System Voltage:12/24V
- Starter Battery Type: Lead-acid Battery
- Maximum Generator Input Voltage: 32V DC
- Maximum Generator Input Current:35A
- Conventional Generator: 13.2~16V/26.4~32V DC
- Intelligent (Euro 6 Standard) Generator: 12~16V/24~32V DC
- Generator charging mode: Buck , Boost , Buck-Boost
- 12V Backup Battery:700W
- Charging Voltage: 13.8V
- Charging Current: ≤25A
- No-load loss: <0.6W
- Maximum Charging Conversion Efficiency: 98%
- Communication method: TTL
- Operating temperature: -35°C~65°C
- Altitude: ≤3000m
- Waterproof level: IP32
- Product dimensions: 221*175.8*82.4mm
- 1x 50A DC to DC Lithium Battery Charger
- 1x User Manual
Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.
Please allow 1-12 business days for delivery
Note: No delivery to PO Box addresses (please provide a residential or business address at checkout)
We ship across Australia, including major cities like: Sydney, Melbourne, Perth, Brisbane, Adelaide, Canberra, Newcastle and the Gold Coast
We're dedicated to getting your purchase to you as swiftly and smoothly as possible. Please note the following details about our shipping process:
Swift Dispatch: Orders are dispatched promptly, with our aim to ship all purchases within 48 hours. This quick, automated turnaround means that alterations are not always possible.
Physical Address Required: We kindly request you provide a physical address, as we are unable to ship to PO Box or Parcel Locker addresses.
Delivery Timeframes: Our standard delivery typically occurs within 3-8 business days. However, for rural areas or during unforeseen delays (like adverse weather events or peak periods), please anticipate a delivery timeframe of up to 12 business days.
Multiple Deliveries: If your order contains multiple items, they may arrive separately. The remaining items usually arrive within 2-5 business days from the receipt of the first item. You can track each item's progress on the courier's website.
Delivery Coordination: If you have specific delivery instructions or encounter any issues, please reach out to us and our customer service team will do our best to help. We look forward to providing you with a seamless shopping experience.
Warranty Policy
Ozzie Energy offers a 12 month warranty on all products from the date of purchase, unless otherwise stated. Ozzie Energy warrants its products against defects in materials and/or workmanship. If a defect arises and a valid claim is received by Ozzie Energy, we can offer solve solutions: repair the products, or provide replacement parts, or arrange a full replacement. The warranty period for commercial use is 3 months.
Naturally the warranty cover does not extend to damage caused by normal wear and tear, accidents, misuse, lack of maintenance, neglect, natural disaster, or other external causes; to damage caused by operating the equipment in a manner outside that described in the instructions. The warranty is considered void if the item has been modified, altered or tampered with by a person (or persons) not authorised by us to provide service (not including standard periodic maintenance).
We do our best to package the products to avoid mishandled or damaged in transit. However, should your item not function on arrival you are entitled to return the product to us for a full refund, repair, or replacement at your request. The item needs to be returned and inspected prior to the resolution being provided.
60 Day Returns Policy
Here at Ozzie Energy, we take customer satisfaction seriously and want to ensure that every customer is 100% satisfied with their purchase.
If for any reason you change your mind about any of the products you purchase from us, simply contact us in writing within 60 days to be guided through getting a refund. Returned items must be in their original packaging with all accessories, in original and re-saleable condition. The original shipping cost plus a 30% restocking fee will be deducted.
If the item has sustained damage in transit, or is not returned as noted above, a revised refund amount may be required.
