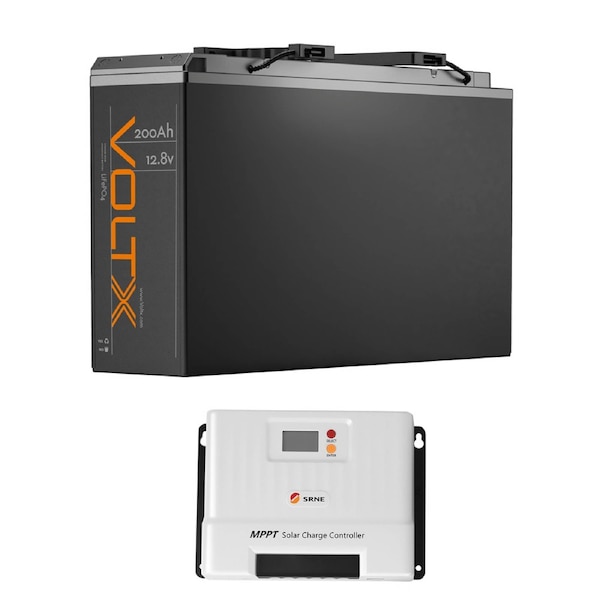

VoltX 12V 200Ah Lithium Battery + 40A MPPT Solar Controller Kit - 2560Wh Solar Backup

• Brand: VoltX
• Nominal Voltage: 12.8V
• Nominal Capacity: 200Ah
• Rated Energy: 2560Wh
• Approx Life Cycles: 4000
• Battery Manage System: 150A
• Standard Charging Current: 100A
• Max. Charging Current: 150A
• Standard Discharge Current: 150A
• Max. Continuous Discharge Current: 150A
• Max. Discharge Current 5 sec: 300A

• Charger: 14.6V 100A
• Charging Voltage: 14.6V
• Overcharge Protection: 14.6V
• Overcharge Recovery: 14.2V
• Overdischarge Protection: 10.6V
• Overdischarge Recovery: 11.2V

• Charge Temperature : 0°C to 45°C
• Discharge Temperature : -20°C to 60°C
• Storage Temperature: -10°C to 50°C
• Charge Method: CC/CV
• Battery Cells: Prismatic
• Cell Grouping: 4S1P
• Parallel Connection: Max 4
• Series Connection: Max 4
• Case Material: ABS Plastic
• Battery Type: LiFePO4 Lithium Battery
• Battery Model: Slim 200Ah
• Certifications: MSDS UN38.3
• Protection Class: IP65
• Warranty in Years: 5

• Product Size: L552 x W110 x H288mm
• Package Size: L612 x W172x H355mm
• Net Weight: 21kg
• Gross Weight: 22kg

• 1x VoltX Slim 200Ah Lithium Battery
• 2x Terminal Bolts M8*16
• 2x Insulating Covers
• 2x Screw Spring Washer
• 4x Screw Washers
• 1x User Manual

• System voltage: 12V/24V
• Rated charging current: 40A
• Static power consumption: ≤10mA
• Maximum solar panel power: 520W/12V; 1040W/24V
• Maximum PV open-circuit voltage: 100V (95V protection, 90V recovery)
• MPPT operating voltage range: (Battery voltage +2V)~72V
• Battery operating voltage range: 8V-32V
• MPPT tracking efficiency: >99%
• Charging conversion efficiency: 85%-98% (10%-100% of rated power)
• Rated load current: 20A
• Load operating mode: Light control, light control + time control, manual mode (default), debugging mode, normally open
• TTL communication: Baud rate: 9,600 bps
• RS485 communication: RJ45 interface, with power output 5V/200 mA,The baud rate is 9,600 bps by default, adjustable.
• Bluetooth communication: Optional
• CAN communication: RJ45 interface, optional (RV-C protocol)
• Historical data: Save the last 200 days of historical data
• Protection function: PV overvoltage protection, PV reverse connection protection, PV shortcircuit protection, night reverse charging protection, input power limit protection, over-temperature protection, load short-circuit protection, overload protection, battery over-voltage/over-discharge protection,battery reverse connection protection, battery end short circuit protection.
• Grounding type: Grounding of common negative electrode
• Cooling mode: Natural heat dissipation
• Charging current setting: Yes
• Full-charging setting: Yes
• Constant voltage output setting: Yes
• Charging temperature compensation of lead-acid battery: Yes
• Temperature unit setting: Yes
• Overload/Short-circuit protection: Yes

• Protection grade: IP32
• Operating ambient temperature range: -35°C~65°C

• Dimension: 228x160x72mm
• Mounting hole spacing: 214x133mm
• Weight: 1750g
• Fixed hole position: Φ5mm

• 1x 40A MPPT Solar Charge Controller
