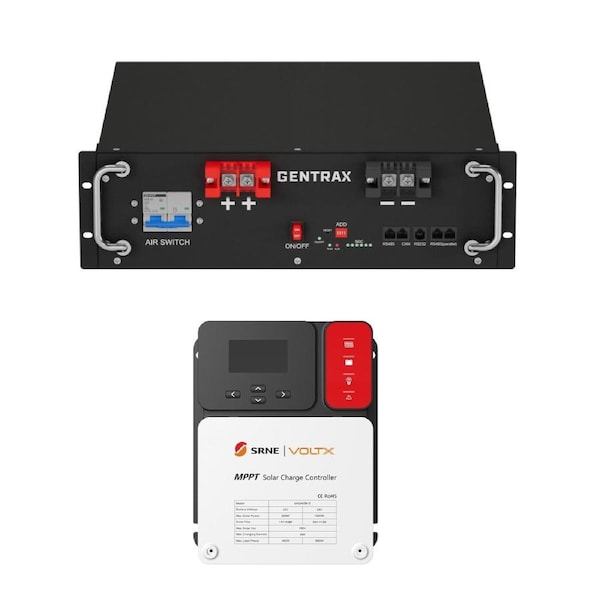

GENTRAX 5120Wh 100Ah Lithium Battery Module + 60A MPPT Solar Charge Controller

• Brand: GENTRAX
• Capacity: 100Ah
• Energy: 5120Wh
• Nominal Voltage: 51.2V
• Cell: Square LFP 100Ah
• Cycle Life: 3000
• Rated Discharge Current: 100A
• Short Circuit Protection: Yes
• Rated Discharge Cut-off Voltage: 43.2V
• Min. Discharge Cut-off Voltage: 43.2V
• Pulse Current: 110A (1s)

• Rated Charge Current: 50A
• Max. Charge Current: 100A
• Rated Charge Voltage: 58.4V
• Charge Cut-off Voltage: 58.4V
• Storage Temp: -5 to 35°C
• Discharge Temp: -20°C to 60°C
• Charge Temp: 0°C to 50°C
• Certifications: UN38.3, CE
• IP Grade: IP20
• Terminal: M8

• Product Size: 483 x 430 x 135mm
• Package Size: 520 x 507 x 200mm
• Product Weight: 40kg
• Package Weight: 45kg

• 1x Battery Module
• 1x User Manual

• Static power consumption: ≤50mA
• Battery Type: USE/FLD/GEL/LI/SLD(Default)
• System voltage: 12V/24V
• Battery's operating voltage range: 8V-32V
• Rated charging current: 60A
• Maximum PV Input Current: 53A
• Maximum solar panel power: 800W/12V; 1600W/24V
• Maximum PV open-circuit voltage: 150V
• MPPT operating voltage point range: (Battery Voltage +2)~110V
• MPPT tracking efficiency: >99%
• Charging conversion efficiency: 85%-98% (10%-100% of rated power)
• Rated load current: 40A
• Load operating mode: Pure light-dependent control, light and time-dependent control, manual mode (default), debugging mode, normally opened.
• TTL communication: Baud Rate 9600kps
• RS485 communication: 2 isolated RS485 communication ports,
• supporting parallel use, with power output of 5V200mA, baud rate of 9,600kps by default and adjustable.
• Bluetooth communication: Built-in
• CAN communication: RV-C Protocol
• Historical data: Can store historical data of the past 300 days
• Backlight function: Light up if the key is pressed down, and automatically turn off in 20s if there is no key action
• Protection function: PV Overvoltage Protection, PV Reverse Connection Protection, PV Short-Circuit Protection, Nighttime Reverse Charge Protection, Input Limited Power Protection, Overtemperature Protection, Load Short-Circuit Protection, Load Overload Protection, Battery Supervoltage/Over-discharge Protection, Battery Reverse Connection Protection and Battery Terminal Short-Circuit Protection.
• Grounding type: Co-negative design and negative grounding
• Cooling mode: Natural Cooling
• Parallel connection for charging: Yes
• Charging voltage line loss compensation: Yes
• Support full settings: Yes
• Constant voltage output setting: Yes
• Charging temperature compensation of lead-acid battery: Yes
• Temperature protection: Yes
• Overload/short-circuit protection: Yes
• Load pre-start: Yes

• Protection grade: IP32
• Operating ambient temperature range: -35°C~ 65°C (no derating within 45°C if well ventilated)

• Dimension: 260x216x98.5mm
• Mounting hole spacing: 200 mm
• Weight: 3.4kg
• Fixed hole position: Φ10mm

• 1x 60A MPPT Solar Charge Controller
