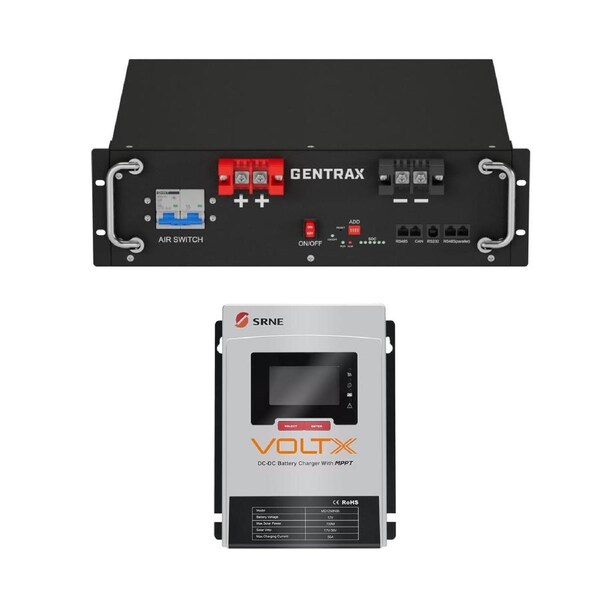

GENTRAX 48V 100Ah Battery Module 5120Wh + 12V 50A DC to DC Charger

• Brand: GENTRAX
• Capacity: 100Ah
• Energy: 5120Wh
• Nominal Voltage: 51.2V
• Cell: Square LFP 100Ah
• Cycle Life: 3000
• Rated Discharge Current: 100A
• Short Circuit Protection: Yes
• Rated Discharge Cut-off Voltage: 43.2V
• Min. Discharge Cut-off Voltage: 43.2V
• Pulse Current: 110A (1s)

• Rated Charge Current: 50A
• Max. Charge Current: 100A
• Rated Charge Voltage: 58.4V
• Charge Cut-off Voltage: 58.4V
• Storage Temp: -5 to 35°C
• Discharge Temp: -20°C to 60°C
• Charge Temp: 0°C to 50°C
• Certifications: UN38.3, CE
• IP Grade: IP20
• Terminal: M8

• Product Size: 483 x 430 x 135mm
• Package Size: 520 x 507 x 200mm
• Product Weight: 40kg
• Package Weight: 45kg

• 1x Battery Module
• 1x User Manual

• Model: MD1250N05
• Backup Battery System Voltage: 12V
• Backup Battery Voltage Range: 9~16V DC
• Backup Battery Type: Sealed Battery, Gel Battery, Vented Battery, Lithium Iron Phosphate Battery, User-defined Battery
• Rated Charging Current: 50A
• Maximum PV Input Voltage: 55V DC
• Max. power point voltage range: 17~36V
• Maximum PV Input Current: 45A
• Solar Panel Charging Mode: Buck MPPT
• MPPT Efficiency:>99%
• PV input power is recommended: 700W
• Generator (Starter Battery) System Voltage:12/24V
• Starter Battery Type: Lead-acid Battery
• Maximum Generator Input Voltage: 32V DC
• Maximum Generator Input Current:35A
• Conventional Generator: 13.2~16V/26.4~32V DC
• Intelligent (Euro 6 Standard) Generator: 12~16V/24~32V DC
• Generator charging mode: Buck , Boost , Buck-Boost
• 12V Backup Battery:700W
• Charging Voltage: 13.8V
• Charging Current: ≤25A
• No-load loss: <0.6W
• Maximum Charging Conversion Efficiency: 98%
• Communication method: TTL
• Operating temperature: -35°C~65°C
• Altitude: ≤3000m
• Waterproof level: IP32

• Product dimensions: 221*175.8*82.4mm

• 1x 50A DC to DC Lithium Battery Charger
• 1x User Manual
