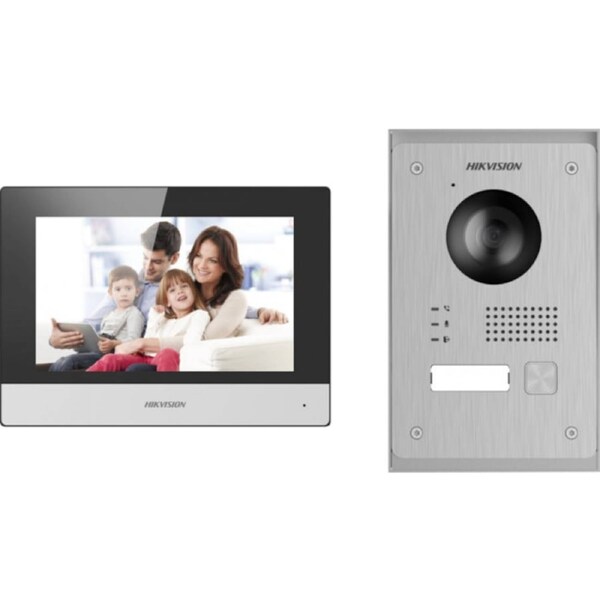

KIS703Y-P 7" TWO WIRE COLOUR VIDEO INTERCOM KIT

TWO-WIRE DIGITAL IP VIDEO INTERCOM KIT

• Indoor Station: 7' touch screen 2-Wire IP indoor station with 1024 x 600 resolution
• Indoor Station: Convenient Hik-Connect APP Mobile Control: receive calls, open the door and live view remotely
• Indoor Station: Easy wizard for quick set up
• Indoor Station: Live-view of the door station
• Indoor Station: Support voice messages when no response from the indoor station
• Door Station: High quality imaging with 2 MP resolution
• Door Station: One call physical button for easier calls
• Door Station: Two-lock control
• Door Station: IP65 protection level
• Door Station: Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply
• Door Station: High-quality stainless steel panel

SPECIFICATIONS

Door station/System parameters

• Operation systemEmbedded Linux operation system
• Operation modeSingle-button
• Flash32 MB
• RAM256 MB

Door station/Video parameters

• Camera2MP HD camera
• Resolution
  • Main stream: 1280*720P, 1920*1080p
  • Sub stream: 640*480
• Night visionLow illumination IR supplement distance: 3 m
• WDR Support
• Field of viewHorizontal: 140o Vertical: 85o
• Video Compression StandardH.264

Door station/Audio parameters

• Audio inputBuilt-in 1*omnidirectional microphone
• Audio outputBuilt-in 1*loudspeaker, 8Ohm
• Audio qualityNoise suppression and echo cancellation
• Audio compression standardG.711 U, G.711 A
• Audio compression Rate64 Kbps

Door station/Network parameters

• Network protocolTCP/IP, RSTP, SIP2.0
• Wired networkSupport, 2-Wire wiring

Door station/Device interfaces

• RS-485/
• Alarm input2( Exit button or door contact)
• Output1*12 V/500 mA output
• Two-wire interface 1
• TAMPER switch 1

Door station/General

• Power consumption< 10 W
• Working temperature-40o C to 60o C(-40o F to 140o F)
• Working humidity10% to 95%
• InstallationSurface mounting, flush mounting
• Protection levelIP65
• Indicator3
• Power supply From indoor station

Indoor station/System parameters

• Operation systemEmbedded Linux operation system
• Memory128 MB
• Flash32 MB

Indoor station/Display parameters

• Display screen7-inch TFT touch screen
• Display resolution1024 x 600
• Operation methodCapacitive touch screen
• BrightnessAdjustable

Indoor station/Audio parameters

• Audio inputBuilt-in 1*omnidirectional microphone
• Audio outputBuilt-in 1*loudspeaker, 8Ohm
• Audio qualityNoise suppression and echo cancellation
• VolumeLocal adjustable
• Audio compression standardG.711 U, G.711 A

Indoor station/Network parameters

• Wired network1*10 Mbps through 2-wire interface
• Wireless networkWi-Fi 802.11 b/g/n, 2.400-2.4835 GHz

Indoor station/Device interfaces

• RS-4851
• Alarm inputReserved
• Two-wire (output)1
• Two-wire (input)1
• Power input24VDC/1.5A

Indoor station/General

• Power supply24VDC/1.5A
• Power consumption 8 W
• Working temperature-10 oC to 50 oC (14 oF to 122 oF)
• Working humidity10% to 90%
