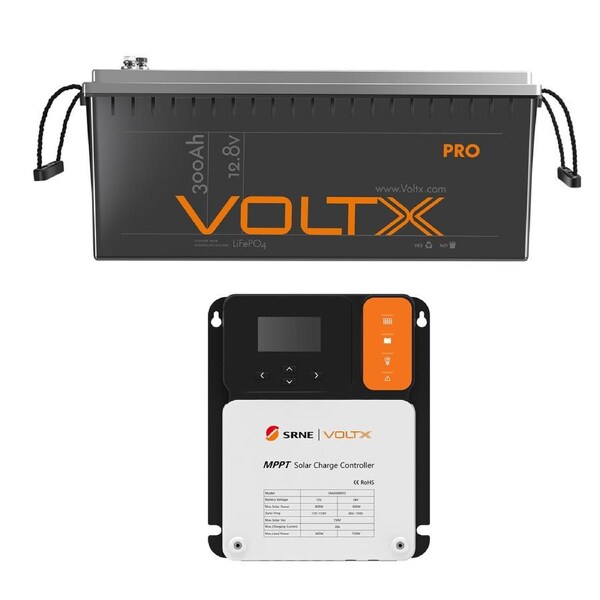

VoltX 12V 300Ah 3840Wh LiFePO4 Lithium Battery + 30A MPPT Solar Charge Controller - Off-Grid Solar Power System

• Brand: VoltX
• Nominal Voltage: 12.8V
• Nominal Capacity: 300Ah
• Rated Energy: 3840Wh
• Approx Life Cycles: 4000
• Battery Manage System: 300A
• Standard Charging Current: 100A
• Max. Charging Current: 300A
• Standard Discharge Current: 200A
• Max. Continuous Discharge Current: 300A
• Max. Discharge Current 5 sec: 600A

• Charger: 14.6V 100A
• Charging Voltage: 14.6V
• Absorption Voltage: 14.4V
• Float Voltage: 13.8V
• Overcharge Protection: 14.4V
• Overcharge Recovery: 14V
• Overdischarge Protection: 10.8V
• Overdischarge Recovery: 11.2V

• Charge Temperature : 0°C to 45°C
• Discharge Temperature : -20°C to 60°C
• Storage Temperature: -10°C to 50°C
• Charge Method: CC/CV
• Battery Cells: Prismatic
• Cell Grouping: 4S2P
• Parallel Connection: Max 6
• Series Connection: Max 6
• Case Material: ABS Plastic
• Battery Type: LiFePO4 Lithium Battery
• Battery Model: Pro 300Ah
• Certifications: IEC 62619
• Warranty in Years: 5

• Product Size: L520 x W269 x H220mm
• Package Size: L585 x W340x H305mm
• Net Weight: 28kg
• Gross Weight: 29.2kg

• 1x VoltX Pro 300Ah Lithium Battery
• 2x Terminal Bolts M8*16
• 2x Insulating Covers
• 2x Screw Spring Washer
• 4x Screw Washers
• 1x User Manual

• Static power consumption: ≤30mA
• Battery Type: USE/FLD/GEL/LI/SLD(Default)
• System voltage: 12V/24V
• Battery's operating voltage range: 8V-32V
• Rated charging current: 30A
• Maximum PV Input Current: 27A
• Maximum solar panel power: 400W/12V; 800W/24V
• Maximum PV open-circuit voltage: 150V
• MPPT operating voltage point range: (Battery Voltage +2)~110V
• MPPT tracking efficiency: >99%
• Charging conversion efficiency: 85%-98% (10%-100% of rated power)
• Rated load current: 30A
• Load operating mode: Pure light-dependent control, light and time-dependent control, manual mode (default), debugging mode, normally opened.
• TTL communication: Baud Rate 9600kps
• RS485 communication: One isolated RS485 communication port, with power output of 5V200mA, baud rate of 9,600kps by default and adjustable.
• Bluetooth communication: Built-in
• CAN communication: RV-C Protocol
• Historical data: Can store historical data of the past 300 days
• Protection function: PV Overvoltage Protection, PV Reverse Connection Protection, PV Short-Circuit Protection, Nighttime Reverse Charge Protection, Input Limited Power Protection, Overtemperature Protection, Load Short-Circuit Protection, Load Overload Protection, Battery Supervoltage/Over-discharge Protection, Battery Reverse Connection Protection and Battery Terminal Short-Circuit Protection.
• Grounding type: Co-negative design and negative grounding
• Cooling mode: Natural Cooling
• Parallel connection for charging: No
• Charging voltage line loss compensation: No
• Support full settings: Yes
• Constant voltage output setting: Yes
• Charging temperature compensation of lead-acid battery: Yes
• Temperature protection: Yes
• Overload/short-circuit protection: Yes
• Load pre-start: Yes

• Protection grade: IP32
• Operating ambient temperature range: -35°C~ 65°C (no derating within 45°C if well ventilated)

• Dimension: 260x216x83.2mm
• Mounting hole spacing: 200 mm
• Weight: 2.3kg
• Fixed hole position: Φ10mm

• 1x 30A MPPT Solar Charge Controller
