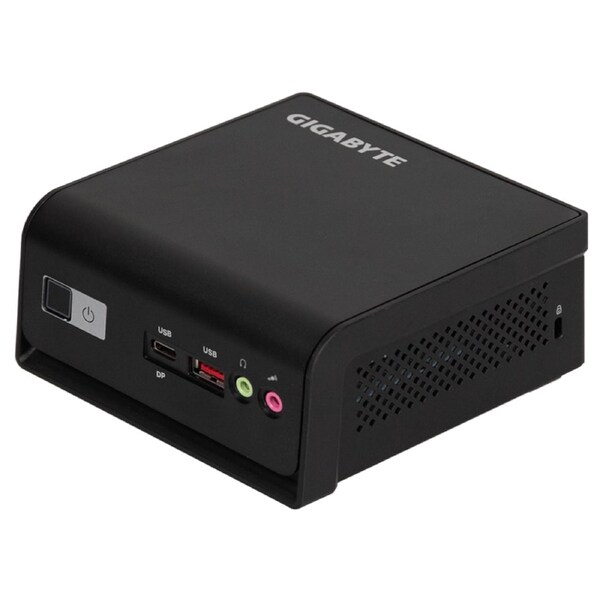

Gigabyte Brix NUC Barebone (Model GB-BTIP-N250) Intel N250/No D5 RAM/No
| Product Name | GB-BTIP-N250 |
| Dimension | 113 mm x 116.52 mm x 56.22 mm |
| Motherboard Size | 108 mm x 103 mm |
| CPU | Intel(R) Processor N250 4C, up to 3.8 GHz, 6W |
| Memory | No Memory included in barebone Slots Available 1 x SO-DIMM DDR5 slot, support up to 4800MHz Max. 16GB |
| LAN | GbE LAN (Realtek(R) RTL8111H) |
| Wi-Fi Card | AW-CB515NF Wi-Fi 5 ; 802.11 a/b/g/n/ac WLAN 1T1R with Bluetooth 5.0 |
| Graphics | Intel(R) Graphics 32EUs 1 x HDMI v2.0, 4096x2160@60Hz 1 x Rear IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz 1 x Front IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz |
| Audio | Realtek(R) ALC897 |
| Storage | 1 x 2.5" slot for SATA HDD/SSD |
| Expansion Slots | No SSD included in barebone Slots Available 1 x M.2 M Key 2280 slot (PCIe Gen 3x2) 1 x M.2 E key 2230 slot (For Wi-Fi + Bluetooth card) |
| Front I/O | 1 x Power button 1 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen2 with Type-C (ALT mode, DP+USB) 1 x Headphone 1 x Microphone |
| Rear I/O | 1 x HDMI 1 x RJ45 2 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen2 Type-C (ALT mode, DP +USB) 1 x Wire Clamp Screw Hole |
| Left I/O | 1 x DC-In |
| Right I/O | 1 x Kensington lock slot |
| Power Supply | Input: AC 100-240V Output: DC 19V / 3.42A, 65W |
| VESA Mount | VESA support Supports 75 x 75 and 100 x 100 mm |
| Supported OS | No OS included in barebone Supports Windows 11 64bits Fedora 40 Ubuntu 24.04.2 LTS Ubuntu 24.04.3 LTS Ubuntu 24.10 Ubuntu 25.04 |
| Environment | System Environment Operating Temperature: 0oC to +35oC System Storage Temperature: -20oC to +60oC |
Ship out the order within 24-48 hours.
Estimated Delivery Time Frame: 2 - 15 business daysChange of mind:
Customer can return the item if purchased by mistake within 14 days of the customer’s order being received.
Change of mind returns will only be eligible for a refund on the product’s sale price within receiving the item'. Return postage is paid by the customer.
