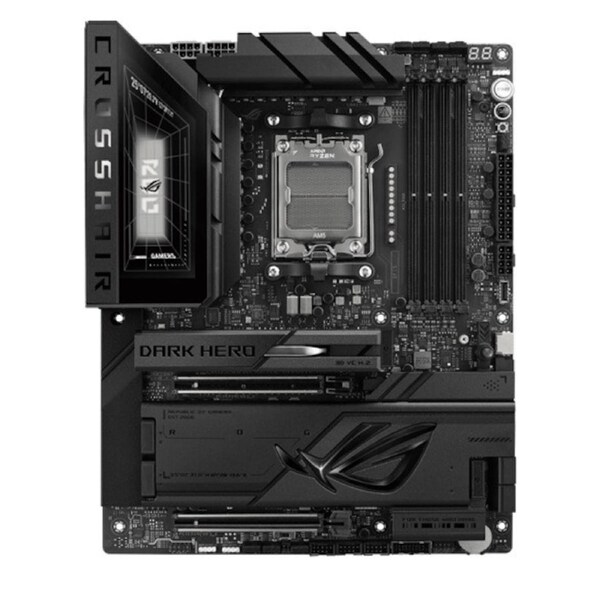

ASUS ROG Crosshair X870E Dark Hero Wi-Fi 7 AM5 DDR5 ATX Motherboard
ROG Crosshair X870E HERO
The AI PC-ready ROG Crosshair X870E Hero offers unyielding power delivery, robust thermal management, hyperspeed connectivity, comprehensive PCIE 5.0 and DDR5 support to unleash the performance of AMD Ryzen(TM) 9000 Series processors. Dark hues predominate across this motherboard, drawing your attention to premium metallic textures, nickel-plated surfaces, sleek contours and a stereoscopic visual effect on the large M.2 and chipset heatsink. This board also features the Polymo Lighting II effect. This upgraded lighting module built into the I/O shroud provides more dynamic RGB illumination for the signature ROG logo.
Specifications
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 |
| Chipset | AMD X870E |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| I/O Connectors | Back Panel I/O Ports: 2 x USB4(R) (40Gbps) ports (2 x USB Type-C(R)), 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C(R)), 1 x HDMI(TM) port, 1 x Wi-Fi module, 1 x Intel(R) 2.5Gb Ethernet port, 1 x Realtek 5Gb Ethernet port, 2 x Gold-plated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack(TM) button, 1 x Clear CMOS button; Front USB (Total 10 ports): 1 x USB 20Gbps (supports USB Type-C(R) with up to 60W PD/QC4+), 1 x USB 20Gbps connector (supports USB Type-C(R)), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Integrated CPU Graphics | 1 x HDMI(TM) port, 2 x USB4(R) (40Gbps) ports support USB Type-C(R) display outputs |
| LAN | 1 x Intel(R) 2.5Gb Ethernet, 1 x Realtek 5Gb Ethernet, ASUS LANGuard |
| PCI Slots | AMD Ryzen(TM) 9000 & 7000 Series Desktop Processors: 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***); AMD Ryzen(TM) 8700 & 8600 & 8400 Series Desktop Processors: 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled); AMD Ryzen(TM) 8500 & 8300 Series Desktop Processors: 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled) |
| Processor Support | AMD Socket AM5 for AMD Ryzen(TM) 9000 & 8000 & 7000 Series Desktop Processors |
| RAID | AMD RAIDXpert2 Technology: Ryzen(TM) 9000 Series Processors: RAID 0/1/5/10, Ryzen(TM) 8000 Series Processors: RAID 0/1, Ryzen(TM) 7000 Series Processors: RAID 0/1/10 |
| RAM Type/Bus/Max | 4 x DIMM slots, max.192GB, DDR5; Supports up to 8200+MT/s(OC) with Ryzen(TM) 9000 Series Processors, 8600+MT/s(OC) with Ryzen(TM) 8000 Series Processors, 8000+MT/s(OC) with Ryzen(TM) 7000 Series Processors; ECC and Non-ECC, Un-buffered Memory; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO(TM)); NitroPath DRAM Technology; ASUS Enhanced Memory Profile (AEMP) |
| Socket | AMD Socket AM5 for AMD Ryzen(TM) 9000 & 8000 & 7000 Series Desktop Processors |
| Storage Interface | Supports 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports |
| Warranty | |
| Weight | |
| Wireless & Bluetooth | Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate, Bluetooth(R) v5.4 |
Ship out the order within 24-48 hours.
Estimated Delivery Time Frame: 2 - 15 business daysChange of mind:
Customer can return the item if purchased by mistake within 14 days of the customer’s order being received.
Change of mind returns will only be eligible for a refund on the product’s sale price within receiving the item'. Return postage is paid by the customer.
Warranty
Without prejudice and to the extent allowed by the Trade Practices Act 1974, The Australian Consumer Law and Competition and Consumer Act 2010, all hardware sold by MAD Electronics Australia is covered by one year limited warranty and is also backed by Australian manufacturer warranty. Where the manufacturer warranty period exceeds one year, we will advise the customer to contact the manufacturer directly for warranty support after the first year of purchase. Due to the nature of consumables products and software, they are not returnable or refundable items.
Any defective products purchased from MAD Electronics Australia and affiliates that fall within the warranty period provided will be covered, unless they fall within the following conditions:
· Physical Damage on the product not caused in the event during transit or Dead on Arrival (DOA) but caused due to mishandling, incorrect use of product for its purposes, improper installation of product, by accident, insect or vermin infestation, improper method or failure to maintain service and handle the item with reasonable care.
· The product has been modified using unauthorised methods. Any modifications on the product including physical and software modifications using third party unauthorised software such as third party firmware updates will void the warranty of products.
· The warranty seal or serial number of the item has been tampered with.
· The item has been serviced by another party other than madelectronics
· Consequential loss including but not limited to data, programs, software or other information stored on storage products, computer or laptop systems.
· Software
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
