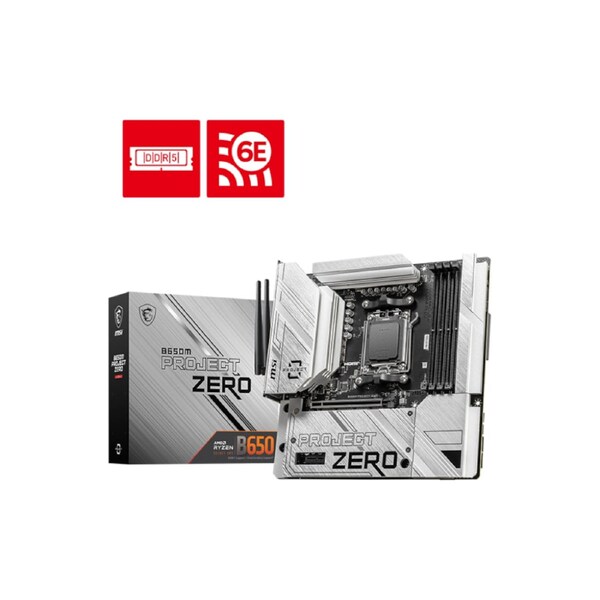

MSI B650M PROJECT ZERO MOTHERBOARD AMD/B650/AM5/mATX/4xDDR5/2xM.2/1xPCI-E(16)+1x
| SPECIFICATIONS & DETAILS | |
| Model Name | |
| B650M PROJECT ZERO | |
| Specifications | |
| MODEL SERIES | PROJECT ZERO |
| CHIPSET | AMD B650 |
| CPU SUPPORT | Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5 |
| MEMORY | 4x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 7600+ MHz 1DPC 2R Max speed up to 6400+ MHz 2DPC 1R Max speed up to 6400+ MHz 2DPC 2R Max speed up to 5400+ MHz |
| ONBOARD GRAPHICS | 1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| STORAGE | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices * SATA_A1_A2 do not support RAID function. |
| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN | Realtek RTL8125BG 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3** * Wi-Fi 6E 6GHz may depend on every country s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| AUDIO | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| INTERNAL I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS | DisplayPort 2.5G LAN USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Audio connectors Flash BIOS Button Clear CMOS Button HDMI USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 2x2 20Gbps (Type-C) |
| OPERATING SYSTEM | Support for Windows 11 64-bit, Windows 10 64-bit |
| PCB DIMENSION (W L) | mATX 243.84mmx243.84mm |
