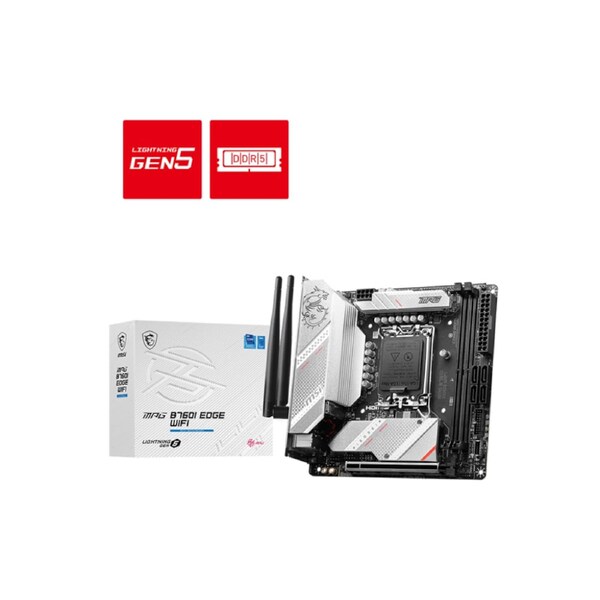

MSI MPG B760I EDGE WIFI MINI ITX MOTHERBOARD
| SPECIFICATIONS & DETAILS | |
| Model Name | |
| MPG B760I EDGE WIFI | |
| Specifications | |
| MODEL SERIES | MPG Series |
| CHIPSET | INTEL B760 |
| CPU | Support Intel(R) Core(TM) 14th/ 13th/ 12th Gen Processors, Intel(R) Pentium(R) Gold and Celeron(R) Processors LGA 1700 |
| MEMORY | 2x DDR5, Maximum Memory Capacity 128GB Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: * 1DPC 1R Max speed up to 7200+ MHz * 1DPC 2R Max speed up to 6600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel(R) Extreme Memory Profile (XMP) |
| ONBOARD GRAPHICS | 1x HDMI(TM) Support HDMI(TM) 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| SLOT | 1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| STORAGE | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 2x USB 2.0 (Rear) 2x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) |
| LAN | Realtek(R) RTL8125BG 2.5Gbps LAN |
| WIRELESS LAN & BLUETOOTH | Intel(R) Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth(R) 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| AUDIO | Realtek(R) ALC897 Codec 7.1-Channel High Definition Audio |
| INTERNAL IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS | USB 5Gbps Display Port USB 10Gbps 2.5G LAN Audio Connectors HDMI(TM) USB 10Gbps (Type-C) USB 2.0 Wi-Fi / Bluetooth |
| OPERATING SYSTEM | Support for Windows(R) 11 64-bit, Windows(R) 10 64-bit |
| PCB INFO | Mini-ITX 170mmx170mm |
| LINK | |
