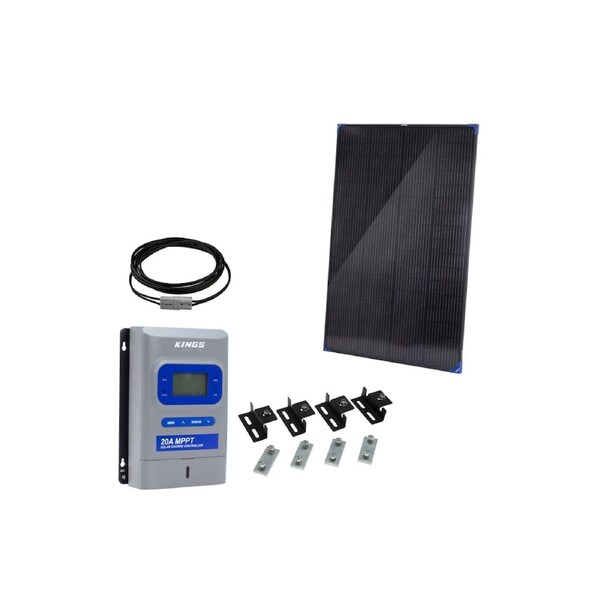

Kings 200W Fixed Solar Panel + Plus MPPT Solar Regulator + 6M Lead + Brackets
• Selectable charging profiles support Lithium Iron Phosphate (LiFePO4), AGM, GEL and Flooded batteries, including 24V LiFePO4 systems. Dedicated lithium profiles and support for standard lead acid and Calcium chemistries allow accurate multi-stage charging for a wide range of battery types. The backlit LCD display provides clear, real-time system data including solar input, battery charging performance, load usage and total energy generated.
200W Fixed Solar Panel
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 21.85V
ISC (Short Circuit Current) 11.25A
VMP (Maximum Power Voltage) 18.83V
IMP (Maximum Power Current) 10.65A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.39%/°C
Pmax Temperature Coefficient -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection(Anderson Style) Plug
Dimensions 87.5 x 127.8 x 2cm
Weight 11.6 kg
Warranty 2 Years
20 AMP MPPT SOLAR REGULATOR
Battery Chemistry Options Lead Acid Standard, Gel, Sealed,
AGM, Calcium, LiFePO4 (Lithium Phosphate)
Display LCD Display
Included cables 2 x Quick Connector Power Cables
Terminal Type (Max Wire Size) Screw Terminals (Up to 16mm2)
Grounding Common Negative
IP Rating IP22
Battery Voltage Range 12 and 24 Volt (8 - 32V)
Max Power Point Working Range (VBAT +2V) ~40V
Max PV Open Cell Voltage Input @ 25°C STC 46V
Standby Power Usage (12v / 24v) Under 30mA
Max Dc Dc Conversion Efficiency 97%
Max Tracking Efficiency Up to 99%
Load Circuit 20 Amp
Dimensions (L x W x H) (cm) 22.0 x 15.9 x 5.9 cm
Weight (Kg) 0.95 KG
Warranty 3 Years
6M LEAD
2.5MM2 COPPER
Conductor Multi-Strand Copper 51x0.25
Conductor Area (each wire) 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug UL94-V0 Flame Resistant Thermoplastic
Connector Copper
Max Voltage 300V
KINGS BLACK MOUNT BRACKETS
Bracket Folded SS with Black Finish
Mounting Hardware SS
Weight (four brackets ) 800gm
Warranty 1 Year
