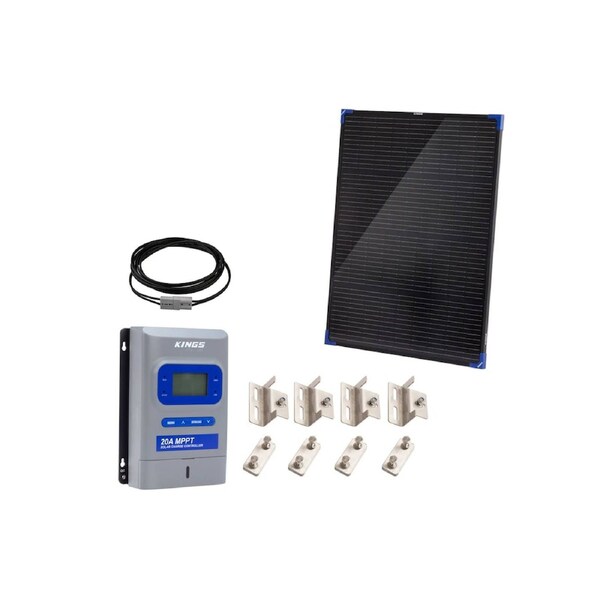

Kings 100W Fixed Solar Panel +MPPT Solar Regulator+6M Lead +SS Brackets
• Selectable charging profiles support Lithium Iron Phosphate (LiFePO4), AGM, GEL and Flooded batteries, including 24V LiFePO4 systems. Dedicated lithium profiles and support for standard lead acid and Calcium chemistries allow accurate multi-stage charging for a wide range of battery types. The backlit LCD display provides clear, real-time system data including solar input, battery charging performance, load usage and total energy generated.
100W FIXED SOLAR PANEL
Output 105W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 23.07V
ISC (Short Circuit Current) 5.61A
VMP (Maximum Power Voltage) 19.90V
IMP (Maximum Power Current) 5.30A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.39%/°C
Pmax Temperature Coefficient -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection (Anderson Style) Plug
Dimensions 87.5 x 68.3 x 2 cm
Weight 6.6kg
Warranty 2 Years
20 AMP MPPT SOLAR REGULATOR
Battery Chemistry Options Lead Acid Standard, Gel, Sealed,
AGM, Calcium, LiFePO4 (Lithium Phosphate)
Display LCD Display
Included cables 2 x Quick Connector Power Cables
Terminal Type (Max Wire Size) Screw Terminals (Up to 16mm2)
Grounding Common Negative
IP Rating IP22
Battery Voltage Range 12 and 24 Volt (8 - 32V)
Max Power Point Working Range (VBAT +2V) ~40V
Max PV Open Cell Voltage Input @ 25°C STC 46V
Standby Power Usage (12v / 24v) Under 30mA
Max Dc Dc Conversion Efficiency 97%
Max Tracking Efficiency Up to 99%
Load Circuit 20 Amp
Dimensions (L x W x H) (cm) 22.0 x 15.9 x 5.9 cm
Weight (Kg) 0.95 KG
Warranty 3 Years
6M SOLAR LEAD
2.5MM2 COPPER
Length 6m
Conductor Multi-Strand Copper 51x0.25
Conductor Area (each) 2.5mm2
Insulation 0.8mm PVC
Outer Sheath 1mm PVC
Outer Dia 9.3mm
Recommended Max Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage 300V
MOUNTING BRACKETS
• Material: Folded SS
• Hardware: SS
• Weight : 800gm
