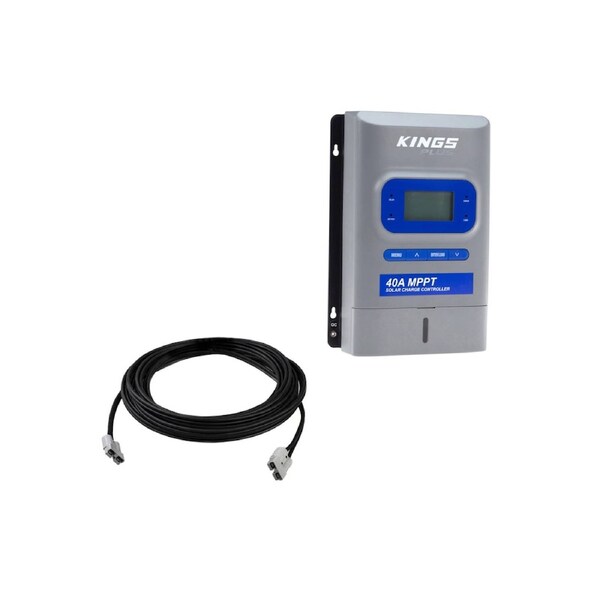

Kings Plus 40 Amp Plus MPPT Solar Regulator 12 and 24 V + 12M Extension Lead
• Selectable charging profiles support Lithium Iron Phosphate (LiFePO4), AGM, GEL and Flooded batteries, including 24V LiFePO4 systems. Dedicated lithium profiles and support for standard lead acid and Calcium chemistries allow accurate multi-stage charging for a wide range of battery types. The backlit LCD display provides clear, real-time system data including solar input, battery charging performance, load usage and total energy generated.
KINGS PLUS 40 AMP PREMIUM MPPT SOLAR REGULATOR
Up to 40 Amps of solar charging
Lithium and AGM Battery compatible
Includes 2 Adventure Kings Quick Connectors
Includes a temperature sensor for accurate temperature sensing
Maximum 780 Watts of input on 12V Battery
The Adventure Kings Plus Premium 40 Amp MPPT Solar Regulator is designed to be the solar charge solution for 12V and 24V systems. Built for touring rigs, caravans and off-grid setups, it delivers efficient charging that protects your batteries and maximises usable solar power.
Battery Chemistry Options Lead Acid Standard, Gel, Sealed,
AGM, Calcium, LiFePO4 (Lithium Phosphate)
Display LCD Display
Included cables 2x Quick Connector Power Cables
Terminal Type (Max Wire Size) Screw Terminals (Up to 16mm2)
Grounding Common Negative
IP Rating IP22
Battery Voltage Range 12 and 24 Volt (8 - 32V)
Max Power Point Working Range (VBAT +2V) ~80V
Max PV Open Cell Voltage Input @ 25°C STC 92 Volt
Standby Power Usage (12v / 24v) Under 30mA
Max Dc Dc Conversion Efficiency 97%
Max Tracking Efficiency Up to 99%
Load Circuit 40 Amp
Dimensions (L x W x H) (cm) 25.5 x 17.5 x 7 cm
Weight (Kg) 1.65 KG
Warranty 3 Years
The 12m Solar Extension Lead
Length 12m
Conductor Material Twin Core Multi-Strand Copper (84x0.3)
Conductor Cross Sectional Area (each wire) 6mm2
Insulation Material 0.8mm Halogen-Free XLPO
Outer Sheath material 0.9mm Halogen-Free XLPO
External Dimensions 13.5mm x 5mm
Recommended Maximum Current 20A
Operating Temperature Range -40°C~+90°
Plug Type Kings Quick Connect Plugs (Anderson Compatible)
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage DC 1500V
