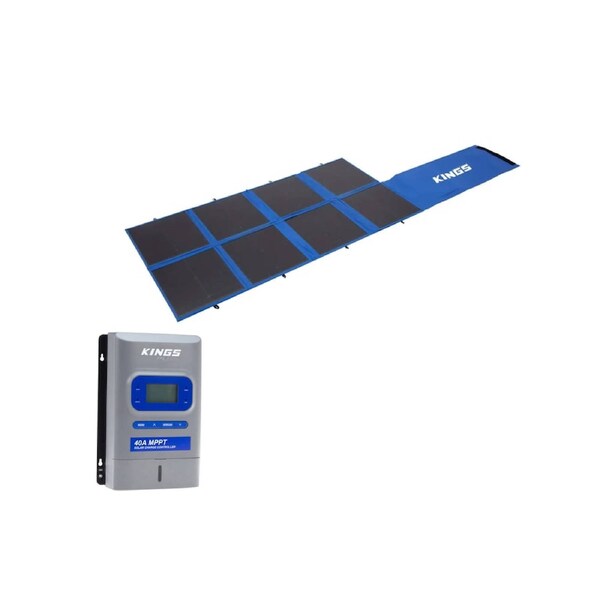

Kings 240W Folding Solar Blanket + Plus 40 Amp MPPT Solar Regulator 12 and 24 V
• Selectable charging profiles support Lithium Iron Phosphate (LiFePO4), AGM, GEL and Flooded batteries, including 24V LiFePO4 systems. Dedicated lithium profiles and support for standard lead acid and Calcium chemistries allow accurate multi-stage charging for a wide range of battery types. The backlit LCD display provides clear, real-time system data including solar input, battery charging performance, load usage and total energy generated.
240W FOLDING SOLAR BLANKET
Output 240W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 25.37V
ISC (Short Circuit Current) 12.39A
Review regulator for max voltage and current rating
IMP (Maximum Power Current) 11.65A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.28%/°C
Pmax Temperature Coefficient -0.36%/°C
Standard Test Condition: 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Open Dimensions 165 x 94 x 0.75cm
Folded Dimensions 44 x 46 x 6cm
Weight 6.6kg
KINGS PLUS 40 AMP PREMIUM MPPT SOLAR REGULATOR
Up to 40 Amps of solar charging
Lithium and AGM Battery compatible
Includes 2 Adventure Kings Quick Connectors
Includes a temperature sensor for accurate temperature sensing
Maximum 780 Watts of input on 12V Battery
The Adventure Kings Plus Premium 40 Amp MPPT Solar Regulator is designed to be the solar charge solution for 12V and 24V systems. Built for touring rigs, caravans and off-grid setups, it delivers efficient charging that protects your batteries and maximises usable solar power.
Battery Chemistry Options Lead Acid Standard, Gel, Sealed,
AGM, Calcium, LiFePO4 (Lithium Phosphate)
Display LCD Display
Included cables 2x Quick Connector Power Cables
Terminal Type (Max Wire Size) Screw Terminals (Up to 16mm2)
Grounding Common Negative
IP Rating IP22
Battery Voltage Range 12 and 24 Volt (8 - 32V)
Max Power Point Working Range (VBAT +2V) ~80V
Max PV Open Cell Voltage Input @ 25°C STC 92 Volt
Standby Power Usage (12v / 24v) Under 30mA
Max Dc Dc Conversion Efficiency 97%
Max Tracking Efficiency Up to 99%
Load Circuit 40 Amp
Dimensions (L x W x H) (cm) 25.5 x 17.5 x 7 cm
Weight (Kg) 1.65 KG
Warranty 3 Years
