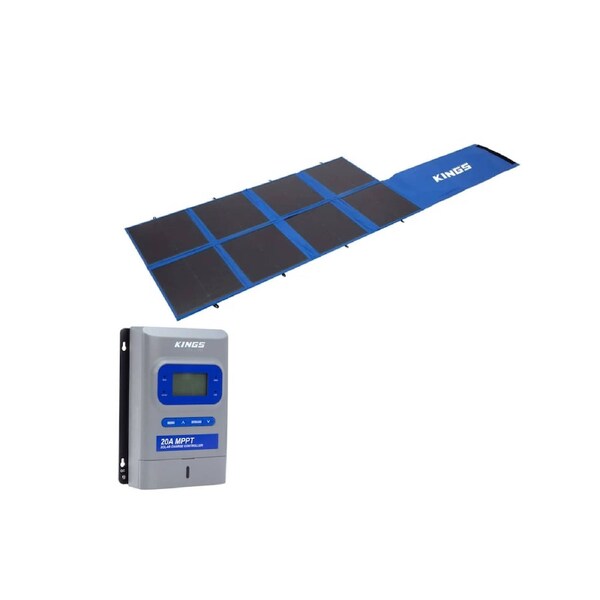

Kings 240W Folding Solar Blanket + Plus MPPT Solar Regulator 12 and 24 V
• Selectable charging profiles support Lithium Iron Phosphate (LiFePO4), AGM, GEL and Flooded batteries, including 24V LiFePO4 systems. Dedicated lithium profiles and support for standard lead acid and Calcium chemistries allow accurate multi-stage charging for a wide range of battery types. The backlit LCD display provides clear, real-time system data including solar input, battery charging performance, load usage and total energy generated.
KINGS 240W FOLDING SOLAR BLANKET | Up to 20A of charge at 12V | Grade A solar cells | Quick Connect Plug
Output 240W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 25.37V
ISC (Short Circuit Current) 12.39A
Note NOTE: VOC and ISC can vary by up to +/-1v and +/-1A
Review regulator for max voltage and current rating
IMP (Maximum Power Current) 11.65A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.28%/°C
Pmax Temperature Coefficient -0.36%/°C
Standard Test Condition: 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Open Dimensions 165 x 94 x 0.75cm (LxWXH)
Folded Dimensions 44 x 46 x 6cm (LxWXH)
Weight 6.6kg
KINGS PLUS 20 AMP PREMIUM MPPT SOLAR REGULATOR
Up to 20 Amps of solar charging
Lithium and AGM Battery compatible
Includes 2 Adventure Kings Quick Connectors
The Adventure Kings Plus Premium 20A MPPT Solar Regulator is built for reliable off-grid power in camping setups, 4WD touring rigs, caravans, camper trailers and remote solar systems.
Battery Chemistry Options Lead Acid Standard, Gel, Sealed,
AGM, Calcium, LiFePO4 (Lithium Phosphate)
Display LCD Display
Included cables 2 x Quick Connector Power Cables
Terminal Type (Max Wire Size) Screw Terminals (Up to 16mm2)
Grounding Common Negative
IP Rating IP22
Battery Voltage Range 12 and 24 Volt (8 - 32V)
Max Power Point Working Range (VBAT +2V) ~40V
Max PV Open Cell Voltage Input @ 25°C STC 46V
Standby Power Usage (12v / 24v) Under 30mA
Max Dc Dc Conversion Efficiency 97%
Max Tracking Efficiency Up to 99%
Load Circuit 20 Amp
Dimensions (L x W x H) (cm) 22.0 x 15.9 x 5.9 cm
Weight (Kg) 0.95 KG
Warranty 3 Years
