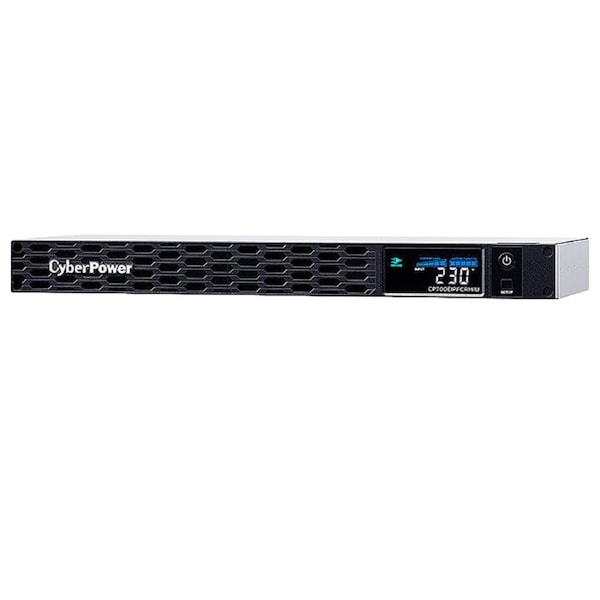

CyberPower PFC Sinewave Series 700VA
CyberPower Systems PFC Sinewave Series 700VA / 420W Tower UPS - 1U -6x IEC C13 (2x Surge Protection only) 6V/8Ah*2? 2 Yrs Adv. Replacement WTY Incl. internal Batteries
Features
- Line-interactive UPS topology
- Automatic Voltage Regulation (AVR)
- Critical & Non-critical load outlets
- Color LCD panel
- USB connectivity
- PowerPanel management software
- Surge and spike protection
- Short-depth chassis design
- Energy saving technology
- Pure sine wave output
- Overload protection
- Hot-swappable batteries
- LED status indicator
- High-speed Ethernet data transmission
- SNMP/HTTP remote management (optional)
- Network protection
- General
- Form Factor: Rackmount (1U)
- UPS Topology: Line-interactive
- Energy Saving Tech: GreenPower UPS(TM) Bypass
- Active PFC Compatibility: Yes
- Input
- Nominal Voltage: 220 / 230 / 240 Vac
- Voltage Range: 165 ~ 271 Vac
- Adjustable Range: 189 ~ 207 Vac / 253 ~ 271 Vac
- Frequency: 50/60 Hz 3 (Auto-sensing)
- Rated Current: 10 A
- Connector: IEC C14 (Straight Plug)
- Detachable Cord: AU x1, IEC C14 x4
- Cord Length: 6 ft / 1.83 m
- Output
- Capacity: 700 VA / 420 W
- Waveform: Pure Sine Wave
- Voltage: 230 Vac 5%
- Frequency: 50/60 Hz 1%
- Power Factor: 0.6
- AVR: Single Boost
- Overload Protection: Circuit Breaker & Current Limiting
- Total Outlets: 6 (IEC C13)
- Battery & Surge Protected: 4
- Surge-only Protected: 2
- Critical Load Outlets: 2
- Non-critical Load Outlets: 2
- Transfer Time: 6 ms (Max 9 ms)
- Battery
- Runtime: 9.6 min (Half Load), 2 min (Full Load)
- Recharge Time: 8 hours (90% recovery)
- Start on Battery: Yes
- User-replaceable & Hot-swappable: Yes
- Type: Sealed Lead-acid
- Replacement Cartridge: RBP0019 (x1)
- Protection & Network
- Surge Suppression: 450 Joules
- Network Protection: RJ45 (1-in / 1-out)
- Management & Indicators
- LCD Panel: Color LCD (Power, Battery, Load, Fault, Warning)
- Controls: Alarm, Input/Output, Battery Settings
- LED Indicators: Power On
- USB Port: HID Compliant (x1)
- Serial Port: Contact Signals
- Audible Alarms: Battery Mode, Low Battery, Overload, Fault
- Included Cable: USB Cable x1
- Ethernet Speed: Up to 1Gbps
- Software: PowerPanel Business (Recommended)
- Remote Monitoring: Optional RMCARD205
- Cloud Service: 90 Days Free Trial
- Physical
- Enclosure: Metal, Silver
- Dimensions: 433 x 44 x 229.7 mm (17.05 x 1.73 x 9.04 in)
- Weight: 8.3 kg (18.3 lbs)
- Shipping Size: 530 x 155 x 280 mm (20.87 x 6.1 x 11.02 in)
- Shipping Weight: 9.02 kg (19.86 lbs)
- Environmental
- Operating Temp: 0 ~ 40 oC (32 ~ 104 oF)
- Humidity: 0 ~ 95% (Non-condensing)
- Operating Elevation: 0 ~ 3,000 m (0-9,843 ft)
- Storage Temp: -5 ~ 45 oC (5 ~ 113 oF)
- Storage Elevation: 0 ~ 15,000 m (0-49,213 ft)
- Heat Dissipation: 17 BTU/hr
- Certifications
- CE, RCM
- RoHS Compliant
