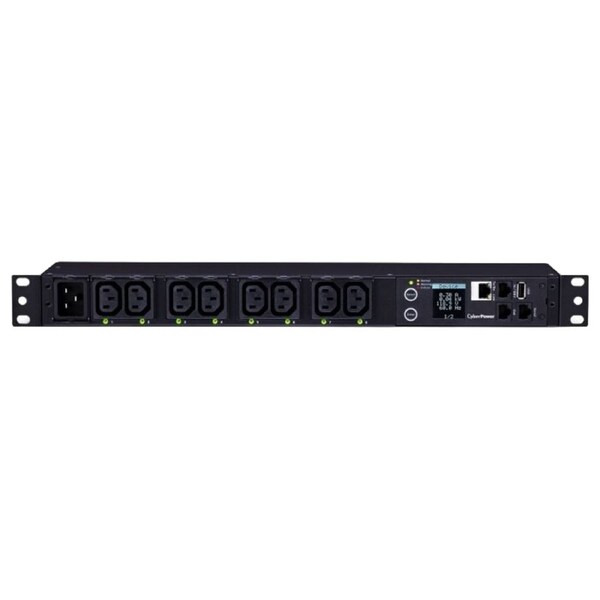

CyberPower PDU81004 Switched Managed Bypass Power Distribution Unit 16 Amp

CP Switched MPO ePDU 16Amp

Features:

• Real-time Local/Remote Monitoring and Switching of Individual Outlet
• Work under High Temperature
• 1% Measurement Accuracy
• Digital Real-time Load Display
• Hot-swappable LCD Design
• LED Status Indicator
• Supports ENVIROSENSOR
• PowerPanel Management Software
• Cord Retention Tray
• Controllable Receptacles with Power Sequencing
• Ultra Low Power Consumption
• Industrial-grade Metal Housing
• User Configurable Color LCD
• Rotatable LCD for Proper Display Orientation
• Firmware Upgrade via USB
• User-upgradeable Firmware
• Adjustable Mounting Brackets
• IEC Receptacle Locking

What's in the box?

1 x PDU81005

1 x User Manual

1 x Cord Retention Tray

1 x Mounting Brackets

1 x Cable Ties

1 x Screw Kit

1 x Power Cord

1 x Serial Cable

• Phase: Single Phase
• Nominal Input Voltage ( Vac ): 100 - 240
• Input Frequency ( Hz ): 50 / 60
• Maximum Input Current ( A ): 16
• Input Connector Type: IEC C20 x 1
• Power Cord Length: 3.05
• Output Voltage ( V ): Depends on Input
• Idle Power Consumption ( W ): < 5
• Outlets - # of Bank(s): 1
• Outlet(s) - Total: 8
• Outlet(s) - Front: 8
• Outlet Type: IEC C13 x 8
• Remote Individual Outlet Control: Yes
• LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Network Information | Serial Number | Environment Status | Hardware Version | Firmware Version
• Hot-swappable LCD Module: Yes
• Auto LCD Orientation: Yes
• LCD Setting & Control: Outlet Control | LCD Settings | Reset / Reboot
• LED Indicators: PDU Status | Tx/Rx | Link | Outlet
• Outlet Metering Capability: 1%
• A-type USB Port: Yes
• Connectivity Port: RJ45 | RJ45 (for Serial) | RJ45 (for ENVIROSENSOR/ Daisy Chain (In)) | RJ45 (for Daisy Chain (Out))
• Environmental Sensor Supported: Yes
• User-upgradeable Firmware: Yes
• Power Management Software: PowerPanel Business (Recommended for small-medium scale management) | PowerPanel Enterprise (Recommended for large scale management)
• Supported Protocols: IPv4/v6 | SNMPv1/v3 | HTTP/HTTPs | TCP/IP | UDP | DHCP | NTP | DNS | SMTP | SSH | SSL | TLS | Telnet | FTP | and Syslog
• Authentication: RADIUS | LDAP | LDAPS | Windows AD
• Installed Rack Height (U): 1
• Form Factor: 1U Vertical Rackmount | 1U Horizontal Rackmount
• Enclosure Construction: Steel
• Cord Retention Tray: Yes
• IEC Receptacle Locking: Yes
• External Site Ground Pin: Yes
• Adjustable Mounting Brackets: 2 Set (L-short | L-long)
• Dimensions: 433 x 44 x 112mm
• Weight: 2.1kg
• Certifications: CE | FCC Class A | UL60950 | UL62368 | EN 55032 Class A | RoHS
• Warranty: 2 Years
• SKU PDU81005
