- 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Green Ethernet technology saves power
- IEEE 802.3X flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS function
- Plug and play, no configuration needed
Delivery varies by location, please see the expected timeframe to receive your product below:
Metro: 1-4 business days
Regional: 1-6 business days
No delivery to PO Box addresses or Parcel Lockers.
If you are unavailable at the time of delivery re-delivery fees may apply.
Change of Mind Returns:
We want you to love your product so if you are not completely satisfied with your purchase let us know.
Most products come with a 30 day change of mind policy. If at any time within the first 30 days from purchase date you are not completely satisfied with your order, please contact us via your account for return approval. Once received and inspected, we will facilitate an agreed resolution.
Please Note:
Postage is paid by the customer
The product must be returned in the original packaging, accessories included
We do not accept responsibility for return items until they reach our warehouse, so we strongly recommend using tracking and/or insurance for the delivery
Fees may apply
Warranty Claims:
Most of our products are supported by a 12 month warranty. This warranty covers all manufacturer faults with the product. Some of our products may have a different warranty period, please check the product description for this. Should an issue arise with your order, please contact us via your account to raise a warranty claim.
HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p |
| Interface | 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 5VDC / 0.6A) |
| LED | System Power Link/Act indicators per port built into each RJ-45 port |
| Dimensions ( W x D x H ) | 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm) |
| Max. Power Consumption | 2.776W (220V/50Hz) |
| Max. Heat Dissipation | 9.466 BTU/h |
PERFORMANCE | |
|---|---|
| Packet Buffer Memory | 1 Mb |
| Jumbo Frame | 16 KB |
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 2K |
OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |

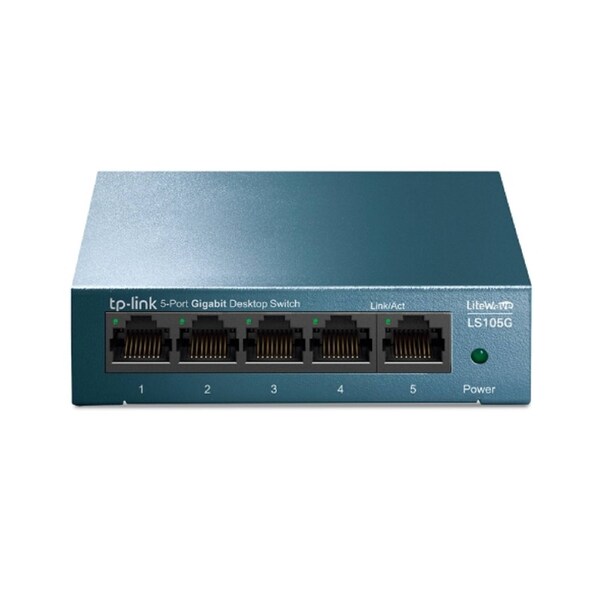

| Package Content | 5-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide |
