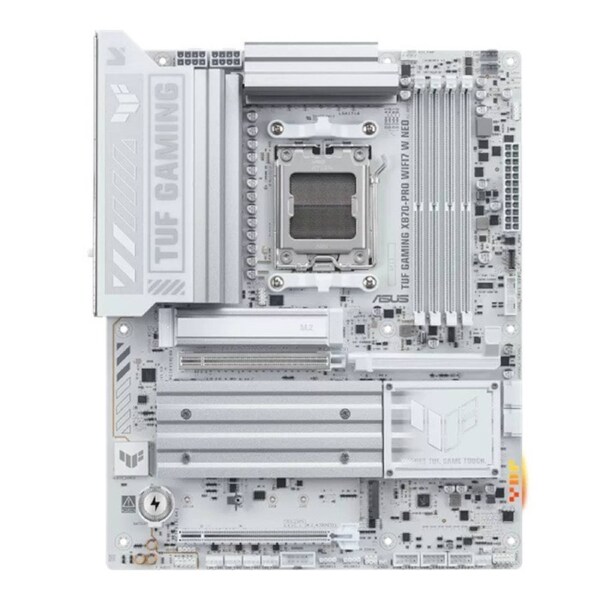

ASUS AMD TUF GAMING X870-PRO WIFI7 W NEO, AM5,X870,4DDR5 256GB,PCIe5.0,M.2x4,WiFi7,BT5.4,5GbE,USB4x2,HDMI,ATX,3yr wty SPECIFICATION Model TUF GAMING X870-PRO WIFI7 W NEO News & Updates Please visit our GLOBAL website to check and download the latest updates. CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* * Refer to for CPU support list. Chipset AMD X870 Chipset Memory 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8600+MT/s(OC)*/8200+MT/s(OC)** with Ryzen 9000 Series Processors, 9600+MT/s(OC)*/9000+MT/s(OC)** with Ryzen 8000 Series Processors, 8000+MT/s(OC)*/8000+MT/s(OC)** with Ryzen 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*** Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO ) Supports DIMM Fit and DIMM Fit Pro NitroPath DRAM Technology ASUS Enhanced Memory Profile (AEMP) * Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth. Results may vary according to system components. ** XMP/EXPO/AEMP Profiles: Rated memory module speeds require setting the BIOS performance profile. Results may vary according to system components and Graphics 1 x HDMI port** 2 x USB4 (40Gbps) ports support USB Type-C display outputs*** * Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Expansion Slots AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD X870 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)*** * Please check the PCIe bifurcation table on the support site ( ** Specifications vary by CPU types. *** PCIEX16(G4) slot shares bandwidth with the The M.2_4 slot. When either the PCIEX16(G4) or M.2_4 slot is occupied, that slot runs at PCIe 4.0 x4 mode. When both slots are occupied, each runs at PCIe 4.0 x2 mode. You can enter the BIOS to adjust the default settings as required. - To ensure compatibility of the device installed, please refer to for the list of supported peripherals. Storage Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)* AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)** AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)*** 2 x SATA 6Gb/s ports * The 2 x USB4 (40Gbps) ports share bandwidth with the M.2_2 slot. The USB4 Controller runs at PCIe 4.0 x2 mode when a device is installed in the M.2_2 slot. The M.2_2 slot runs at PCIe x2 mode by default. You can switch M.2_2 to M.2_2 X4 mode in the BIOS, but this will disable the USB4 (40Gbps) ports. ** Specifications vary by CPU types. *** The M.2_4 slot shares bandwidth with the PCIEX16(G4) slot. When either the PCIEX16(G4) or M.2_4 slot is occupied, that slot runs at PCIe 4.0 x4 mode. When both slots are occupied, each runs at PCIe 4.0 x2 mode. You can enter the BIOS to adjust the default settings as required. RAID Support AMD RAIDXpert2 Technology Ryzen 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10 Ethernet 1 x Realtek 5Gb Ethernet TUF LANGuard BIOS 64MB (512Mb) Flash ROM, UEFI AMI BIOS Operating System Windows 11 Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Ship out the order within 24-48 hours.
Estimated Delivery Time Frame: 2 - 15 business days
Change of mind:
Customer can return the item if purchased by mistake within 14 days of the customer’s order being received.
Change of mind returns will only be eligible for a refund on the product’s sale price within receiving the item'. Return postage is paid by the customer.
Warranty
Without prejudice and to the extent allowed by the Trade Practices Act 1974, The Australian Consumer Law and Competition and Consumer Act 2010, all hardware sold by MAD Electronics Australia is covered by one year limited warranty and is also backed by Australian manufacturer warranty. Where the manufacturer warranty period exceeds one year, we will advise the customer to contact the manufacturer directly for warranty support after the first year of purchase. Due to the nature of consumables products and software, they are not returnable or refundable items.
Any defective products purchased from MAD Electronics Australia and affiliates that fall within the warranty period provided will be covered, unless they fall within the following conditions:
· Physical Damage on the product not caused in the event during transit or Dead on Arrival (DOA) but caused due to mishandling, incorrect use of product for its purposes, improper installation of product, by accident, insect or vermin infestation, improper method or failure to maintain service and handle the item with reasonable care.
· The product has been modified using unauthorised methods. Any modifications on the product including physical and software modifications using third party unauthorised software such as third party firmware updates will void the warranty of products.
· The warranty seal or serial number of the item has been tampered with.
· The item has been serviced by another party other than madelectronics
· Consequential loss including but not limited to data, programs, software or other information stored on storage products, computer or laptop systems.
· Software
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
