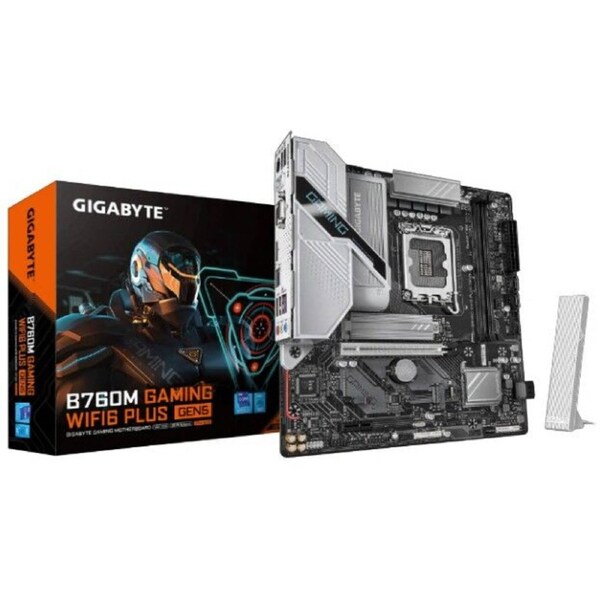

Gigabyte B760M GAMING WIFI6 PLUS GEN5 Intel LGA 1700 m-ATX Motherboard, 2xDDR5 ~128GB, 1xPCI-E x16, 1xPCI-E x1, 2xM.2, 4xSATA, 5xUSB 3.2, 2xUSB 2.0

Gigabyte B760M GAMING WIFI6 PLUS GEN5 Intel LGA 1700 m-ATX Motherboard, 2xDDR5 ~128GB, 1xPCI-E x16, 1xPCI-E x1, 2xM.2, 4xSATA, 5xUSB 3.2, 2xUSB 2.0 Specification: CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors Chipset Intel® B760 Express Chipset Memory 14th and 13th Generation Intel® Core™ i9/i7 Processors: - Support for DDR5 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium®Gold and Celeron® Processors: - Support for DDR5 4800/4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Realtek® Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard Expansion Slots CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 Storage Interface CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB Chipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x antenna connectors (1T1R) 1 x D-Sub port (Note) 1 x HDMI port (Note) 1 x DisplayPort (Note) 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU. BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm

We dispatch order within 1 business day, We are providing the free shipping service via Australia Post and Aramex or Couriers please to deliver the parcels, it usually takes about 2-6 business days to receive the order.

DOA Returns:

In the event that your item has arrived faulty, please inform us within 7 days of receiving the item. We will organise a replacement or refund after the faulty item has been returned in its original conditions with full packaging. The processing time for DOA is generally 1-2 weeks from the time we receive the returns, since we will send the faulty item to the manufacturer for testing.

Warranty Returns:

Standard manufacturer's warranty will apply after DOA period, and within the specified warranty term (commonly 12 months). No warranty applies to software, accessories and consumables. Physical damage is not covered by DOA or Warranty.

Change of Mind Returns:

If you change your mind about a purchase, it is at our discretion to accept a return for refund. We will generally accept a return provided you contact us within 7 days of receiving the product, the product is in their original condition, and the product is not a consumable or software. Change of mind returns will only be eligible for a refund on the product’s sale price, and in some cases, a partial refund on the product’s sale price.

Items need to be returned within 30 days of delivery in its original un-opened and sealed packaging at buyer's cost. A restocking fee of 15% of the purchase price will be charged when the returned item has been opened or seal broken, since the item is no longer considered as brand new. If the item has been used, the restocking fee may be up to 50%. The shipping cost and restocking fee will be deducted from your refund.
