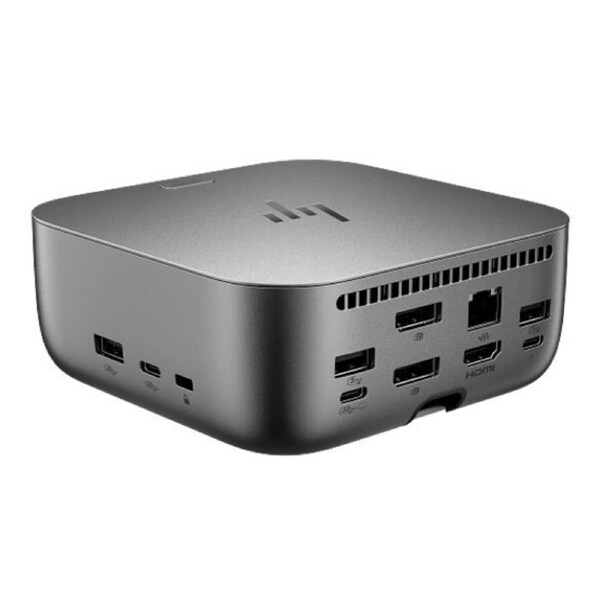

HP Dock G6 Thunderbolt 4 Ulltra Docking Station - 180W Power Delivery 4xDisplays 2xDP 1xHDMI 4xUSB-A 2xUSB-C 1xTB4 2.5GbE RJ45 for HP Notebook PC
Cable length1 m
Cable type1 back Thunderbolt™ 4 cable to connect to host system (up to 100 W USB Power Delivery)
Cartons per layer28
Cartons per pallet5 (air); 10 (ocean)
Certified collaboration softwareIntel® Thunderbolt™ 4
CompatibilityTested and supported on select HP commercial PCs. For HP notebook compatibility please visit - https://pcb.inc.hp.com/webapp/#!/us-en and search by notebook. Tested and supported on select 3rd party PCs. Contact your local sales representative to learn more.
Compatibility Statement NoteOur docks are tested and validated with most HP USB-C and Thunderbolt 4 systems as well as tested with select 3rd party systems like Dell, Lenovo, and Apple. Contact your local sales representative to learn more.
Compatible Operating SystemsWindows 10; Windows 11; macOS; Linux; ThinPro; ChromeOS
Connection typeThunderbolt™ 4
Country of originMade in China or Thailand
Current, maximum6.15 A
Dimensions (W x D x H)12.1 x 12.1 x 4.95 cm
Display supportUp to 3 external displays and 1 PC display or up to 4 external displays
Displays supportedQuad monitor
Drivers includedIntel® NIC driver; Realtek NIC driver (ARM); Realtek NIC driver (Windows)
I/O Port locationRear
LEDFront LED bar: RGB LED (white, blue, amber, green, red); Power button: RGB LED (white, blue, amber, green, red)
Management featuresHP CMSL; Disconnected Firmware updates; eTag; PXE Boot; Wake on LAN (from the Off, Sleep or Hibernation states); MAC address pass-through (from the On, Off, Sleep or Hibernation states); LAN/WLAN switching; Disable LAN; Event messaging
Management SoftwarePoly Lens with automatic firmware updates
Manufacturer WarrantyHP three-year limited warranty
Material Type for itemFERT
Multiple order quantity1
Non-Operating Humidity Range5 to 95% non-condensing
Non-operating temperature - Celsius-20 to 60°C
Operating altitude-15 to 3,048 m
Operating humidity range10 to 90% non-condensing
Operating temperature range32 to 95°F
Operating voltage19.5 V
Package dimensions (W x D x H)39.6 x 17.1 x 9.5 cm
Package weight1.08 kg
Pallet (layers)6 (air); 14 (ocean)
Pallet dimensions (W x D x H)120 x 100 x 14 cm
Physical security1 nano security lock slot
Ports1 Thunderbolt™ 4 with USB Type-C® 40Gbps signaling rate; 2 USB Type-A 5Gbps signaling rate (charging); 1 HDMI 2.1; 2 DisplayPort™ 1.4; 1 RJ-45 (2.5 GbE)
Power120 W external power adapter
Power button typeMechanical power button with RGB LED indicator to power or wake host system
Power delivery (PD) profiles12V/5A; 15V/5A; 20V/5A; 5V/3A; 9V/3A
Power to hostUp to 100 W via Thunderbolt™ 4 (both HP and non-HP host devices)
Products per pallet168 (air); 392 (ocean)
Products per pallet layer28
Refresh rate (maximum)360 Hz
Registration requiredNo
Resolution (maximum)Up to 8K
Security managementHP Sure Start
Security management footnote number[3]
Software includedHP Quick Connect
Software included footnote number[10,12]
Storage altitude-15 to 12,192 m
Sustainable impact specifications35% post-consumer recycled plastic
UNSPSC code43211602
UPC number1.98415E+11
Weight740 g
