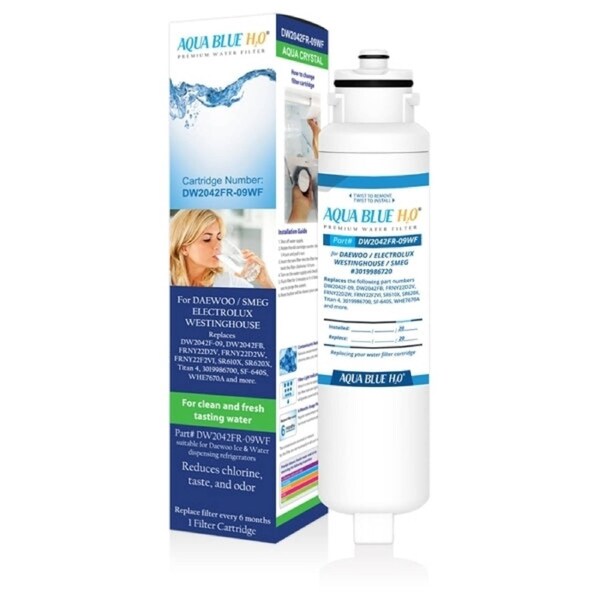

Aqua Blue H20 Daewoo/Smeg Aqua Crystal DW2042FR-09 3019986700 Replacement Fridge Filter
Daewoo/ SMEG / WESTINGHOUSE
Aqua Crystal Filters DW2042FR-09 /DW2042FR-09WF
Replacement Refrigeration Water Filter
ACC140
3019986700/3019986720, ACC140
This Filter also fits Hisense HX2017FR-A K1958594 fridge as well.
The filter is mounted on the ceiling inside the fridge.
To remove old filter rotate counterclockwise until the filter comes out slightly and you hear a snap.
Service life of 6 months Capacity 1136 litres Dimensions are 245 mm overall length and 50mm across.
Installation instructions:
Shut off water supply.
Rotate the old cartridge counter clockwise 1/4 turn and pull it out.
Remove white cap from the new water filter.
Insert the new filter into the filter head and twist the filter clockwise 1/4 turn.
Turn on the water supply and check for leaks.
Flush filter for 5 minutes before use to purge the system.
Reset the "Filter Indicator" light by pressing the Ice Maker Lock button for 3 seconds or more. While holding the lock button, the light will change to green.
View Installation Guide : Please CLICK here
#3019986720
Replaces the following part numbers - DW2042F-09, DW2042FR-09, DW2042F09, DW2042FR09, FRNY22D2V, FRNY22D2W, FRNY22F2VI, DW2042FB, SR610X,sr610n,SR620X, Titan4, Titan 4, 3019986700,SF-640S,SR620XPK
SUIT
SF640-S, SR610XPK, SR620XPK,WHE7670SA,SF640S-1,SF-640S-1,AQP-FF12A
- FRN-Y22F2VI, Parmco fridge
Important: It is essential that operation, maintenance and filter replacement be carried out in accordance with manufacture's recommended procedures and guidelines for this product to perform as advertised. Failure to do so may void warranty.
Daewoo refrigerators with internal water filter- FRN-Y22D2V- FRN-Y22D2W
Suitable for: some models of Daewoo, LG, Smeg, Miele and Westinghouse refrigerators.
The DW2042FR-09 water filter replaces: DW2042F-09, DW2042FR-09, DW2042FR09, FRNY225D2V, FRNY22D2W, FRNY22F2VI, DW2042FB, SR620X, Titan4, Titan 4, 3019986700.
HISENSE : HR6FDFF701SW,HR6FDFF701BW,643129713422
The filter also suits the Westinghouse WHE7670SA
This fridge water filter is recommended by the manufacturer to be replaced every 6 months, or when the "change filter" light comes on.
Technical specifications:
Flow rate : 0.5 GPM (1.9LPM)
Pressure : 30 - 125 psi (207 - 862kPa)
Temperature : 34 - 100 (1 - 38 )
Service life : 6 Months
Capacity : 300 Gallons (1,136 Liters)
Function : Chemical / Mechanical Reduction
H/W/D 240MM / 50MM/ 45MM
NSF APPROVED
LOOK AFTER YOUR HEALTH ALWAYS BUY A FILTER THAT HAS BEEN APPROVED BY A WELL KNOWN STANDARDS FEDERATION OR WATER AUTHORITY NSF OR WRAS.
Filter to effectively reduce the sediment, chlorine, taste & odours.
99.30% of Lead at pH 6.5
99.90% of Lead at pH 8.5
94.50% of Mercury at pH 6.5
96.60% of Mercury at pH 8.5
97.60% of Partculates (Class 1)
89.60% of Benzene
99.90% of P-Dichlorobenzene
99.99% of Cysts
98.70% of Carbofuran
97.00% of Chlorine
99.10% of Turbidity
Reduces the following contaminants:
2,4-Dichlorophenoxyacetic Acid (2,4-D)
Asbestos/ Atrazine/ Benzene/ Carbofuran/ Chlorine Taste & Odor/ Toxaphene
Lead at pH 6.5/ Lead at pH 8.5/ Lindane/ Mercury at pH 6.5/ Mercury at pH 8.5
Particulates (Class I)
Toxaphene
Chemical and Mechanical ReductionTested and Certified by NSF International against NSF/ANSI Standards 42 for the reduction of Chlorine Taste and Odour.
Important: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. The contaminants or other substances removed or reduced by the water filter device are not necessarily in your water
Please check Models This Part Fits to make sure this filter will easily slot into your fridge water dispenser.
Designed to improve the taste and quality of the drinking water and ice cubes
The filter cartridge should be replaced at least every 6 months
About the Aqua Crystal DW2042FR-09 fridge filter:
The filter is mounted on the ceiling inside the fridge. This fridge water filter is the original water filter for Daewoo refrigerators and is designed to improve the taste of your water. Kept in optimal working order, it yields bottled water quality on tap at just a fraction of the cost.
The DW2042FR-09 Daewoo water filter reduces the following health-related contaminants:
97.60% of Chlorine Taste and Odour
99.90% of Particulate (Class III)
50 Width (mm) 45 Depth (mm) 240 Height (mm)
Tested and Certified by NSF International against NSF/ANSI Standards 42 for the reduction of Chlorine Taste and Odour. As with all built-in refrigerator water filters, the Daewoo DW2042FR-09 Aqua Crystal does not remove Fluoride.
Important: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. The contaminant...
