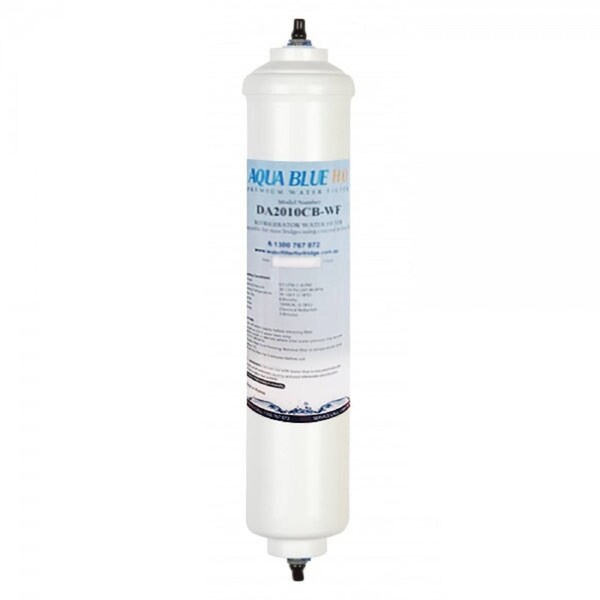

DA2010CB External Fridge Filter - Suits Haier , Hisense
AQUA BLUE H2O COMPATIBLE EXTERNAL INLINE FRIDGE WATER FILTERS DA2010CB
PREMIUM FRIDGE INLINE FILTER FOR HAIER
The refrigerator water filter is designed to remove contaminants like chlorine, lead, and harmful sediments, offering NSF 42/53/401 certified filtration. It is the perfect replacement for Whirlpool, LG, Samsung, and Kenmore refrigerator water filters, with a wide range of models available to ensure top-quality water with every use.
This is for external compatible water filters with 1/4" pushfit connections
You are buying Superior Quality compatible filters with push-fit connections.
Installation and replacement procedure for the Compatible External fridge water filter:
1. Find isolation valve which will be located somewhere on the water supply line to the fridge. Turn it off and to depressurise the system draw a large glass of water from the water outlet at the fridge.
2. Have a bucket and towel ready as there will be a small spillage of water during this process. Remove the old filter by depressing the locking collar at each end of the filter with your thumb nail (or similar) and at the same time pull out the water supply line. Discard the old filter.
3. Take the new filter, making sure the flow direction is correct and insert the inlet side only, the line will go in approx 5 - 10mm and you will feel it hit home.
4. IMPORTANT - Placing the filter in the bucket, turn on the water supply and allow about 5 litres of water to flow through the filter and into the bucket. This will remov e any loose carbon fines. Turn off the water supply and connect the line that feeds into the fridge. Turn on the water supply and run approx 2 litres through the system.
5. Complete the Replacement Due sticker and place in a visible area inside the fridge door.
Note: The green light changes to orange after five months to indicate that you should soon change the water filter. It changes to red after an additional one month (6 months after the water filter was changed or installed) to indicate that you must change the water filter. If the water filter indicator lights up red, press the ICE TIMER and ICE MODE buttons at the same time for about three seconds to reset the water filter indication light from red to green.
Important: It is essential that operation, maintenance and filter replacement be carried out in accordance with manufacture's recommended procedures and guidelines for this product to perform as advertised. Failure to do so may void warranty
As with all built-in refrigerator water filters, the compatible external fridge water filter does not remove Fluoride.
Note: The filter provides cleaner, fresher water ice.
Important: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. The contaminants or other substances removed or reduced by the water filter device are not necessarily in your water
View Installation Guide : Please CLICK here
Suitable for: External inline refrigerator water filter is a replacement cartridge for side-by-side refrigerators that have externally fitted cartridges
Aqua Blue H2O Compatible External In-Line Fridge Water Filter DA2010CB, Premium Water Filter for HAIER is a suitable replacement for Haier brand fridge model HFD647WISS, HSBS562IS
Hisense EBE5167SD RH 925042860
Hisense EHE5167SB 925042816
Hisense ERE6070SX-XE 920404153
Hisense ESE6077SA*06
Hisense ESE6077SC
Hisense ESE6077SF 925042663
Hisense ESE6077SG 925042817
Hisense ESE6078WA
Hisense ESE6078WA*4
Hisense ESE6078WA*05
Hisense ESE6977SC
Hisense ESE6977SF 925042665
Hisense ESE6977SG 925042819
Hisense HSE6070SB-XE 925042566
Hisense WBE5160SC 925042861
Hisense WHE5160SA-D 925042855
Hisense WSE6070PB
Hisense WSE6070PB*06
Hisense WSE6070PB*07
Hisense WSE6070SA
Hisense WSE6070SA*4
Hisense WSE6070SB
Hisense WSE6070SB*06
Hisense WSE6070SF 925042654
Hisense WSE6070PB*07
Hisense WSE6070WA
Hisense WSE6070WA*4
Hisense WSE6070WB
Hisense WSE6070WB*06
Hisense WSE6070WB*07
Hisense WSE6070WF 925042655
Hisense WSE6970PA
Hisense WSE6970SA
Hisense WSE6970SE
Hisense WSE6970SF 925042659
Hisense WSE6970WA
Hisense WSE6970WE
Hisense WSE6970WF 925042660
Also is compatible with the following filter part numbers: 01-0000-79, AC15, AC30, AC36, H-30S, H-5, H-53, H-8, H-83, H-83SR
This Filter Also Fits SRS603HLS for Ice maker only.
The Aqua Blue H2O Compatible External Water Filters Operating Specifications are as Follows:
<...| Flow Rate |
1.9 lpm |
| Operating Temperature |
min 1oC / max 38oC |
| Operating Pressure |
min 207 kPa (30 psi) / max 862 kPa (125 psi) |
| Technology |
High quality Carbon Block |
| Function |
Chemical and Mechanical Reduction |
| Capacity |
3,785 litres |
| Service Life |
6 months |
| Dimensions approximately |
5 cm x 25.5 cm |
| UPC |
643129713415 |
| Important: Do not us... |
