FMP350 Filtamate+ Water Line Hose Kit 1/4 inch + Compatible Water Filter Set

FMP350 Filtamate(R) + Water Line Hose Kit 1/4 inch

+ Compatible Water Filter DA2010CB SET

Replacement Kits for Fridge Filter & Ice Maker Water Filters


THIS KIT SET PACKING INCLUDES:
- 1X EXTERNAL WATER FILTER DA2010CB
- NYLON TUBE CUTTER FOR MAXIMUM TUBE OUTER DIAMETER 15MM
- 1X 1/4" 10 METRE HOSE
- 2X INLINE FILTER BRACKET
- 1X 1/4" FEMALE CONNECTOR TO 1/4" PUSH IN(BACK OF FRIDGE CONNECTION)
- 1X 3/4"-1/4" BSP SPEED FIT CONNECTION
- 1X 1/2"-1/4" BSP SPEED FIT CONNECTION
- 1X 1/4"-1/4" SPEED BALL VALVE
- FMP 350 Filtamate(R) - Pressure Limiting Valve

DA2010CB Filter Installation >>

This is for external compatible water filters with 1/4" pushfit connections

You are buying Superior Quality compatible filters with push-fit connections.

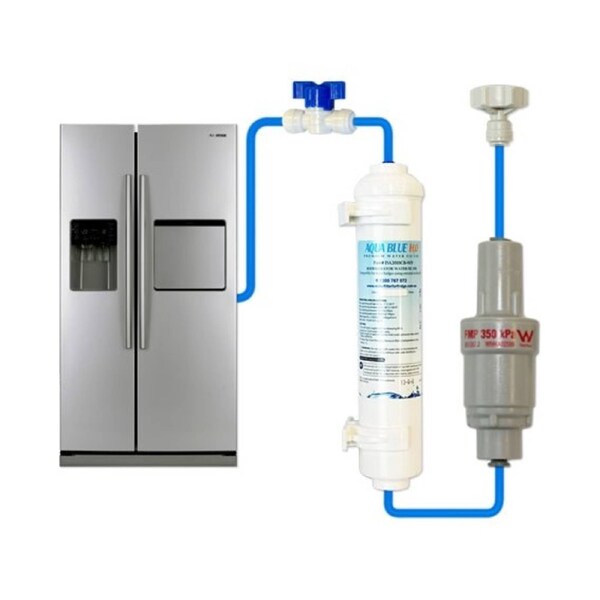

Installation and replacement procedure for the Compatible External fridge water filter :

1. Find isolation valve which will be located somewhere on the water supply line to the fridge. Turn it off and to depressurise the system draw a large glass of water from the water outlet at the fridge.

2. Have a bucket and towel ready as there will be a small spillage of water during this process. Remove the old filter by depressing the locking collar at each end of the filter with your thumb nail (or similar) and at the same time pull out the water supply line. Discard the old filter.

3. Take the new filter, making sure the flow direction is correct and insert the inlet side only, the line will go in approx 5 - 10mm and you will feel it hit home.

4. IMPORTANT - Placing the filter in the bucket, turn on the water supply and allow about 5 litres of water to flow through the filter and into the bucket. This will remov e any loose carbon fines. Turn off the water supply and connect the line that feeds into the fridge. Turn on the water supply and run approx 2 litres through the system.

5. Complete the Replacement Due sticker and place in a visible area inside the fridge door.

NOTE: The green light changes to orange after five months to indicate that you should soon change the water filter. It changes to red after an additional one month (6 months after the water filter was changed or installed) to indicate that you must change the water filter. If the water filter indicator lights up red, press the ICE TIMER and ICE MODE buttons at the same time for about three seconds to reset the water filter indication light from red to green.

Important: It is essential that operation, maintenance and filter replacement be carried out in accordance with manufacture's recommended procedures and guidelines for this product to perform as advertised. Failure to do so may void warranty

As with all built-in refrigerator water filters, the compatible external fridge water filter does not remove Fluoride.

Note: The filter provides cleaner, fresher water ice.

Important: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. The contaminants or other substances removed or reduced by the water filter device are not necessarily in your water

FMP 350 Installation>>

Installation

Installation must be carried out by a Qualified Person.
All pipe work must be flushed prior to installation.
Do NOT apply heat near valve during installation.
Must be fitted downstream of approved isolating valves.
Must be installed in the direction as indicated by the flow arrow.
Must be protected by a line strainer (See specifications and product codes for valves with integral line strainer).
Must be installed according to local regulations.May be fitted in any orientation.
Warranty is limited to any fault found in a valve due to poor workmanship or materials that is returned to Apex Valves Ltd within 1 year from the date of manufacture.
If thermal expansion (due to heating, cooling) or back pressure can occur downstream, an expansion valve must be fitted to relieve the excessive pressure build up.Note:The FiltaMate valve opens and closes automatically every time water is drawn through it. As it is a mechanical device we recommend that it is replaced every 5 years or sooner in high usage installations.


IF YOU ARE NOT 100% SATISFIED WITH YOUR PURCHASE WE OFFER A FULL REFUND OR REPLACEMENT.

View Installation Guide : Please CLICK here

DA2010CB Filter Description >>


Suitable for:
External compatible water filters with 1/4" pushfit connections You are buying Superior Quality compatible filters with push-fit connections.

The Aqua Blue H2O DA2010CB Water Filter replaces:
3010541600, 3019974100, 3650JD8050A, 3890JC2990A, 497818, 5231JA2010B, 5231JA2012A, BL-9808, C00114417, DA29-10105J, DD-7098, EF-9603, GXRTDR, GXRTQ, GXRTQR, HAFEX-EXP, Magic Water Filter, WSF-100, 5231JA2010A, External




The Aqua Blue H2O DA2010CB Fridge Filter For SAMSUNG Fridges Replace Or is Compatible With The Following Filter Part Numbers:

Samsung

magic water filter- WSF-100...EF-9603

LG AND HOTPOINT

...BL9808, 3890JC2990A

DAEWOO...

DD7098

GE

SMART WATER FILTERS...GXRTQ

WHIRLPOOL

4378411

SMEG

FFU00P,MSZ701NFHB,MSZ702NFHBD,FFU21,MSZ702NFD,NUP1811,FFU22K,MSZ702NFDUK
