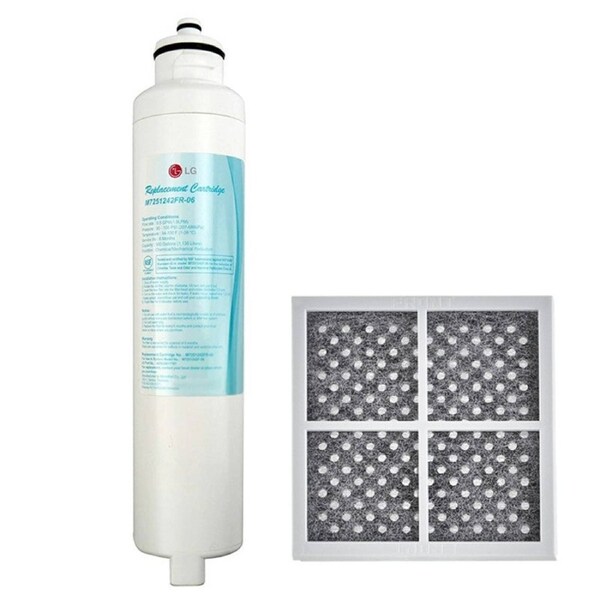

LG Internal filter M7251242FR-06 + Air Filter (LT120F)

LG M7251253F-06 WITH LT120F ( AIR FRESHENER )

LT120F AIR FILTER MANUAL

The M7251253F-06 (ADQ32617701) water filter cartridge for LG fridges:

• is an original LG internal water filter
• is a replacement cartridge for all LG side-by-side refrigerators that have internally fitted slim water filter cartridges
• is tested and Certified by NSF International against NSF/ANSI Standards 42
• LG recommends replacement every 6 months
• is manufactured by Microflter Co. Ltd. for LG (country of origin Korea)

The M7251253F-06 fridge filter for LG fridges replaces or is compatible with the following filter part numbers:

• M725123F-06
• M7251242F-06
• M725153FR-06
• ADQ32617703
• ADQ32617701

The M7251253F-06 LG, Microfilter Ltd water filter reduces the following health related contaminants:

• Chlorine Taste and Odour

• Particulate (Class III)

Tested and Certified by NSF International against NSF/ANSI Standards 42 for the reduction of Chlorine Taste and Odour. As with all built-in refrigerator water filters, the LG ADQ23617701 does not remove Fluoride.

Important: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. The contaminants or other substances removed or reduced by the water filter device are not necessarily in your water.

THE M7251253F-06 (ADQ32617701) WATER FILTER OPERATING SPECIFICATIONS ARE AS FOLLOWS:

• Flow Rate 1.9 lpm
• Operating Temperature min 1oC / max 38oC
• Operating Pressure min 207 kPa (30 psi) / max 689 kPa (100 psi)
• Function Chemical and Mechanical Reduction
• Capacity 1 136 litres
• Service Life 6 months
• Dimensions approximately 6 cm x 29 cm

Important: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Never install or operate where inlet water pressure may exceed 689 kPa.

Change filter at least every 6 months.

Important: Some manufacturers use the same fridge model number for fridges supplied with both internal and external filter systems, please make sure that your fridge uses an Internalwater filter before ordering this item

Flush filter for 5 minutes before use.

Installation and replacement procedure for the M7251253F-06 fridge water filter:

• Rotate the handle of the old cartridge 1/4 turn counter clockwise.
• Pull out the filter and discard.
• With cartridge handle in the vertical position, push the new filter into the filter cover until it stops.
• Twist the filter 1/4 turn clockwise.
• Run water through the water dispenser for 5 minutes to purge the system.

• Reset the "Filter Indicator" light by pressing and holding theLight/Filter button for 3 seconds.

When to change a filter: There is a replacement indicator light for the water filter cartridge on the digital panel. The filter cartridge should be replaced when the filter indicator light turns on or reaches 0, or every 6 months, or if your water dispenser or ice maker performance decreases noticeably.

Important: It is essential that operation, maintenance and filter replacement be carried out in accordance with manufacture's recommended procedures and guidelines for this product to perform as advertised. Failure to do so may void warranty

IF YOU ARE NOT 100% SATISFIED WITH YOUR PURCHASE WE OFFER A FULL REFUND OR REPLACEMENT.

waterfilterforfridge.com.au

THIS IS A NEW STYLE OF LG FRIDGE FILTER

Fridge water filter M7251242FR-06

Fits the following refrigerators models:

LG GRP2470ACM

Alternate Pat numbers are
M7251242FR-06
M7251242F-06
M7251253FR-06
M7251253F-06
ADQ32617701

SUIT FOR GR-L247STSL

Operating Temperature: Min. 1oC / Max. 37.8oC
Working Pressure: Min. 2.07 bar / Max. 6.89 bar
Flow Rate: 1.9 Lpm
Capacity: 1136liter
Service Life: 6 months
Dimensions: 25x4.5cm

Tested and certified by NSF International against NSF/ANSI Std. 42 in model M7251242F-06 for the reduction of Chlorine, Taste and Odor.

Installation of LG M7251242FR-06:

Shut off water supply.

Rotate the old filter counter clockwise 1/4 turn and pull it out.

Insert the new filter into the filter head and rotate clockwise 1/4 turn.

Turn on the water and check for leaks. If leaks occur, repeat step

1,2,3,4.

If leaks persist, discontinue use and call your supporting
dealer.

View Installation Guide : Please CLICK here

LG Internal Filter

IF YOU ARE NOT 100% SATISFIED WITH YOUR PURCHASE WE OFFER A FULL REFUND OR REPLACEMENT.

waterfilterforfridge.com.au
