OMEGA Fridge External In line Fridge Filter Push in fitting

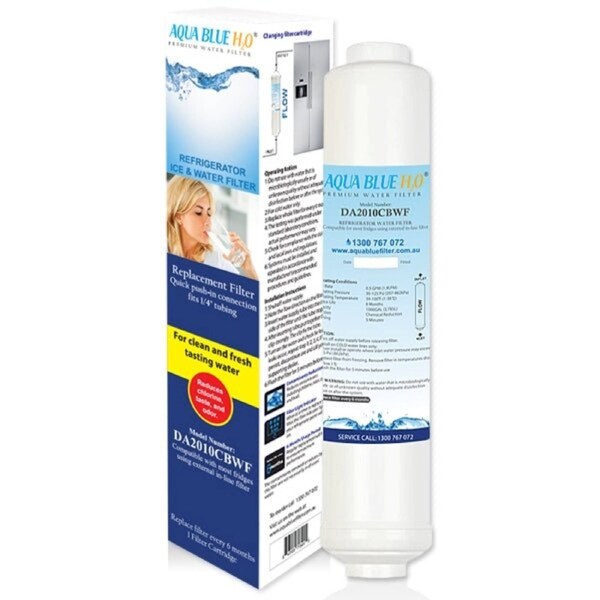

AQUA BLUE H2O Samsung COMPATIBLE External Water Filter (DA2010CB)

FITS Omega

FBW600P/1
FBW616W
OFSI6XA

THIS FILTER IS MANUFACTURED BY MICROFILTER, KOREA- THE VERY SAME COMPANY THAT MADE GENUINE SAMSUNG FRIDGE FILTERS!!!

This is for external compatible water filters with 1/4" pushfit connections You are buying Superior Quality compatible filters with push-fit connections.

Installation and replacement procedure for the Compatible External fridge water filter :

1. Find isolation valve which will be located somewhere on the water supply line to the fridge. Turn it off and to depressurise the system draw a large glass of water from the water outlet at the fridge.

2. Have a bucket and towel ready as there will be a small spillage of water during this process. Remove the old filter by depressing the locking collar at each end of the filter with your thumb nail (or similar) and at the same time pull out the water supply line. Discard the old filter.

3. Take the new filter, making sure the flow direction is correct and insert the inlet side only, the line will go in approx 5 - 10mm and you will feel it hit home.

4. IMPORTANT - Placing the filter in the bucket, turn on the water supply and allow about 5 litres of water to flow through the filter and into the bucket. This will remov e any loose carbon fines. Turn off the water supply and connect the line that feeds into the fridge. Turn on the water supply and run approx 2 litres through the system.

5. Complete the Replacement Due sticker and place in a visible area inside the fridge door.

NOTE: The green light changes to orange after five months to indicate that you should soon change the water filter. It changes to red after an additional one month (6 months after the water filter was changed or installed) to indicate that you must change the water filter. If the water filter indicator lights up red, press the ICE TIMER and ICE MODE buttons at the same time for about three seconds to reset the water filter indication light from red to green.

Important: It is essential that operation, maintenance and filter replacement be carried out in accordance with manufacture's recommended procedures and guidelines for this product to perform as advertised. Failure to do so may void warranty

As with all built-in refrigerator water filters, the compatible external fridge water filter does not remove Fluoride.

Note: The filter provides cleaner, fresher water ice.

Important: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. The contaminants or other substances removed or reduced by the water filter device are not necessarily in your water

View Installation Guide : Please CLICK here

External inline refrigerator water filter is a replacement cartridge for side-by-side refrigerators that have externally fitted cartridges replaces : Samsung (WSF-100, EF-9603, DA29-10105J),

Suitable for:
External inline refrigerator water filter is a replacement cartridge for side-by-side refrigerators that have externally fitted cartridges


The Compatible External Fridge Water Filter Replaces:3010541600, 3019974100, 3650JD8050A, 3890JC2990A, 497818, C00114417, DA29-10105J, EF-9603, HAFEX-EXP, Magic Water Filter, WSF-100, External Fridge Filters


The Compatible External Fridge Filter Replace Or is Compatible With The Following Filter Part Numbers: 3010541600, 3019974100, 3650JD8050A, 3890JC2990A, 497818, C00114417, DA29-10105J, EF-9603, HAFEX-EXP, Magic Water Filter, WSF-100, 3890jc2990a composition filter

Suits for following Fridge Models :

SRF583DLS-> ICE MAKER
SRS565DHLS
SRS580DHLS
SRF527DSLS
SRF579DLS
SRS565DHLS
SRS580DHLS
SRF579DIS
SR615DP
SRS615DP
SRS585HDIS
SRS583HDP
SRS610HDS
SRS21DCMS1
RS21DCSV1
RS21DCNS1
RS21FCSV1
RS21FCNS1
S24AHESWQN
S24ADESWQN
SS20XS1
SS20XM2
SS20XM1
SS20XA1
SS20WH5
SS20WH3
SS20WH2
SS20WH1
RS21FGRS1
SS20SH1
SS9OLLOX
SS20SH2
SS20SP1
SS20WG1
SRS614DW
SRS607HDSS
SRF579DLS
SRS580DW
SRS581DTKM
SRS582DTKGM
SRS614DW
SRS616DSSB
SRS616DHSS
SR-S20...
SRS579NP
SRS580DTKG
SRS582DSSB
SRS615DP
SRS614DW
SRS585DHIS

SRS618DP

SRS614BW

SRS635SCPLS

This also fits Euro model

RS21DNSV, RS21JCSV, RS21FCSV, RS21DCMS, RS21DCNS, RS21DNNS, RS21JCNS, RS21DPSM, RS21FCNS, RS21FGRS, RS21DLAL, RSH1DBBP, RSH1DTMH, RSH1DTSW, RSH1DBMH, RSH1FBBP, RSH1FBMH, RSH1FTSW, RSH1DBIS, RSH1DEIS, RSH1DTPE, RSH1DBRS, RSH1FBRS, RSH1DLBG, RS21DLMR1
