Samsung WSF-100 HAFEF Magic External Fridge Water Filter + Hose(5m) Kit + Valve

Notice: We're dispatching Samsung Genuine Filter External DA29-10105J instead of WSF-100

Samsung Screw Fitting WSF-100 Genuine Fridge Water Filter

+ Hose(5M) Kit

+ Pressure Limiting Valve.

100% GENUINE SAMSUNG FILTERS

THE WSF-100 MAGIC WATER FILTER WATER FILTER CARTRIDGE FOR SAMSUNG FRIDGES:
* is an original Samsung external refrigerator water filter
* is a replacement cartridge for side-by-side refrigerators that use externally fitting cartridges
* water filter with screw fitting connectors
* Samsung recommends replacement every 6 months
* country of origin Korea
* EAN 0635510419464

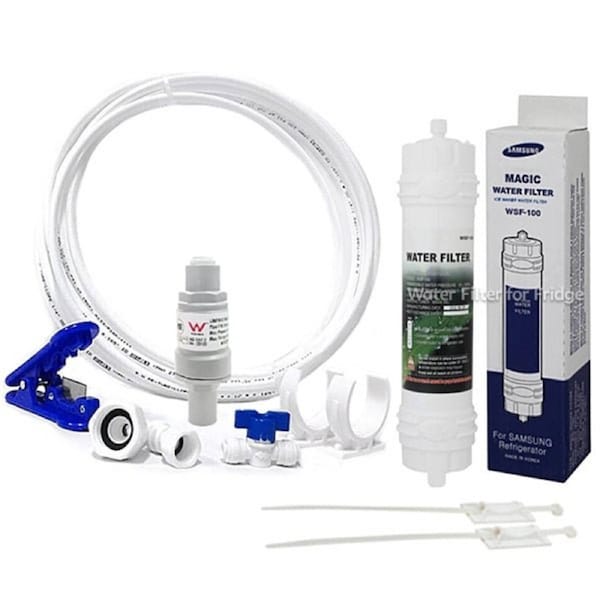

THIS KIT SET PACKING INCLUDES:
- GENUINE SAMSUNG WSF-100 EXTERNAL FILTER
- NYLON TUBE CUTTER FOR MAXIMUM TUBE OUTER DIAMETER 15MM
- 1X 1/4" 5 METRE HOSE
- 2X INLINE FILTER BRACKET
- 1X 1/4" FEMALE CONNECTOR TO 1/4" PUSH IN(BACK OF FRIDGE CONNECTION)
- 1X 3/4"-1/4" BSP SPEED FIT CONNECTION
- 1X 1/2"-1/4" BSP SPEED FIT CONNECTION
- 1X 1/4"-1/4" SPEED BALL VALVE
- PRESSURE LIMITING VALVE

INSTALLATION AND REPLACEMENT PROCEDURE FOR THE WSF-100 FRIDGE WATER FILTER
Turn off the cold water supply.
Remove the tubing from the ends of the old filter.
Note: Take precautions as water will drain from the filter and pipes.
Discard the old water filter.
Unscrew the threaded connector and place it over the end of the cut section of pipe coming from the appliance.
Push the pipe over the end of the filter that the flow arrow points to.
Tighten up the threaded connector.
Repeat on the other end of the filter.
Turn on the water supply.
Check the filter area for leaks.
Run water through the dispenser for 3 minutes to purge the system.
Reset the "Filter Indicator" light by pressing and holding the Ice Type and the Child Lock (or Moisture Control) buttons simultaneously for 3 seconds (the light should turn green).

When to change a filter: There is a replacement indicator light for the water filter cartridge on the temperature control panel. The filter cartridge should be replaced when the replacement indicator light turns red, or every 6 months, or if the flow of water to a dispenser or icemaker decreases.
Important: It is essential that operation, maintenance and filter replacement be carried out in accordance with manufacture's recommended procedures and guidelines for this product to perform as advertised. Failure to do so may void warranty.

View Installation Guide : Please CLICK here

THE WSF-100 FRIDGE FILTER FOR SAMSUNG FRIDGES REPLACES OR IS COMPATIBLE WITH THE FOLLOWING FILTER PART NUMBERS
DA29-10105J,E,H
K32010CB
WSF100 v2
EF-9603
HAFEX-EXP
K3MFC2010F
Magic Water Filter
DA29-10105C

Fits the following fridge models
SRF579DIS, SR615DP, SRS615DP, SRS585HDIS, SRS583HDP
SRS610HDSS, RS21DCMS1, RS21DCSV1, RS21DCNS1, RS21FCSV1, RS21FCNS1
S24AHESWQN, S24ADESWQN
SS20XS1, SS20XM2, SS20XM1, SS20XA1, SS20WH5
SS20WH3, SS20WH2, SS20WH1, RS21FGRS1, SS20SH1
SS9OLLOX, SS20SH2, SS20SP1, SS20WG1, SRS614DW
SRS607HDSS, SRF579DLS, SRS580DW, SRS581DTKM, SRS582DTKGM
SRS614DW, SRS616DSSB, SRS616DHSS, SR-S20...
SRS579NP, SRS580DTKG, SRS582DSSB, SRS615DP SRS617DW, SRS618DP, SRS583DW

THE WSF-100 MAGIC WATER FILTER WATER FILTER OPERATING SPECIFICATIONS ARE AS FOLLOWS
Operating Temperature : MIN 0.6oC / MAX 38oC
Operating Pressure : MIN 138 KPA (20 PSI) / MAX 862 KPA (125 PSI)
Capacity : 3,028 LITRES
Service Life : 6 MONTHS
Dimensions : APPROXIMATELY 6 CM X 32 CM
Important: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
Change filter at least every 6 months.

NSF APPROVED
LOOK AFTER YOUR HEALTH ALWAYS BUY A FILTER THAT HAS BEEN APPROVED BY A WELL KNOWN STANDARDS FEDERATION OR WATER AUTHORITY NSF OR WRAS.

Pressure Limiting Valve 350Kpa 50psi Filter Protection Valve
- Pressure Reduction Valve with 1/4" Quick Connect Push Fit In and Out
Suitable for High pressure systems to protect drink dispensers e.g. Water filters, ice makers, coffee machines and reverse osmosis machines. Prevent water hammer and back flow.
- Australian/New Zealand Watermark Approved
Highly recommended when installing water filter systems.
- Integral Check Valve
- Resists water hammer.
- Stops backflow.

Pressure limiting valve in 350kpa with back flow prevention.
Watermark AS1357.2 Lic 23133
NSF : Certified to NSF/ANSI 61 Section 9
Limiting valve: 350kpa (50 PSI)
Flow: 7.5L/Min at 700 Kpa (100 PSI)
Max Pressure: 1600 Kpa (230 PSI)
Max Temperature: 40C
1/4" John guest type tubing connections
Ideal for a reverse osmosis filter system to limit the pressure applied to the system
