LG AQP-FF05A replacement filter 5231JA2002AWF

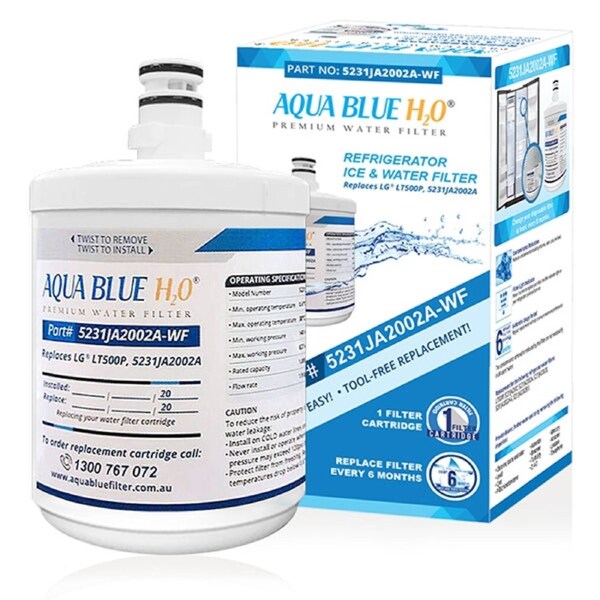

LG 5231JA2002A / LT500P Compatible Refrigerator Water and Ice Filter
The AQUA BLUE 5231JA2002AWF filter fits LG refrigerator models that use the LT500P and ADQ72910911
Installing your new water filter:
Twist the old filter a quarter-turn counterclockwis.
Pull the filter straight down and discard (don't worry, the water will shut off automatically).
Push the new filter up into the fridge until it stops.
Twist the filter a quarter-turn clockwise.
Reset your "change filter" light (if your fridge has one).
Resetting your "change filter" light:
Press and hold the reset button for 3 seconds.
To remove filter, turn off water supply and release the pressure in the lines by pressing the water dispenser, then remove the top shelf and light cover, turn the filter and pull down to remove.
Refrigerator manufacturers recommend that fridge filters be replaced every 6 months or when the "change filter" light comes on.
A handy hint is to put a small amount of cooking oil on the o-rings of the new filter this will make it easier to remove next time.
View Installation Guide : Please CLICK here
Click here : Check manufacture specification
Click here : What Contaminants Might be Lurking in Our Drinking Water?
The 5231JA2002A Fridge Filter for LG Fridges Replaces or is Compatible with the following Filter Part Numbers:
LT500P, 5231JA2002B, 5231JA2002A, AP250R, WF290, 5231JA2002A-2
The 5231JA2002A / LT500P Filter Replaces these Oolder Filter Part Numbers:
5231JA2002, 5231JA2002A, 5231JA2002A-S,
5231JA2002B, 5231JA2002B-S
LT500P, PS2487038, WF-290
| Model | Description | Production Model |
| GR-D267DTU.ATIRGAP | REF-Side by Side, Internet | GR-D267DTU.ATIRGAP |
| GR-L207DTUA.ATIQRAN | REF-SIDE BY SIDE | GR-L207DTUA.ATIQRAN |
| GR-L207DVUA.ASWQRAN | REF-SIDE BY SIDE | GR-L207DVUA.ASWQRAN |
| GR-L207NIS.ATIRGAP | 594L, Titanium, Ice & water dispensor | GR-L207GTUA.ATIRGAP |
| GR-L207NSUA.ASTQRAN | REF-SIDE BY SIDE | GR-L207NSUA.ASTQRAN |
| GR-L207WVS.ASWRGAP | 594L, white, Ice&water dispensor | GR-L207GVUA.ASWRGAP |
| GR-L247ER.* | WATER & ICE DISP & FILTER/FUZZY LOGIC | GR-L247ER.SWRGAP |
| GR-L247NI.* | WATER & ICE DISP | GR-L247FTBA.ATIRGAP |
| GR-L247NIS.ATIRGAP | 691L, Titanium, Ice&water dispensor | GR-L247HTBA.ATIRGAP |
| GR-L247NSS.ATIRGAP | 24CU | GR-L247QTFA.ATIRGAP |
| GR-L247TS.* | WATER & ICE DISP | GR-L247NSBA.ASTRGAP |
| GR-L247TSS.ASTRGAP | 691L, Stainless Trimkit, Ice&water dispensor | GR-L247PSBA.ASTRGAP |
| GR-L247WH.ASWRGAP | REF-SIDE BY SIDE | GR-L247DVUA.ASWRGAP |
| GR-L247WSS.ASWRGAP | 24CU | GR-L247QVFA.ASWRGAP |
| GR-L247WV.* | WATER & ICE DISP | GR-L247FVBA.ASWRGAP |
| GR-L247WVS.ASWRGAP | 691L, white, ice&water dispensor | GR-L247HVBA.ASWRGAP |
| GR-L257NI.ATIPGAP | 720L, side by side, stainless, contour design | GR-L257BTBA.ATIRGAP |
| GR-L257STS.ASTRGAP | 25CU | GR-L257SSKA.ASTRGAP |
| GR-L258DS.APVRGAP | 3D French | GR-L258FLXA.APVRGAP |
| GR-P207DVUA.ASWQRAN | REF-SIDE BY SIDE | GR-P207DVUA.ASWQRAN |
| GR-P257SVB.ASWRGAP | 25CU | GR-P257SVBA.ASWRGAP |
| GW-L227STS.ASTRGAP | 22CU | GW-L227HSRA.ASTRGAP |
| GW-P227STS.ASTRGAP | 22CU | GW-P227HSRA.ASTRGAP |
This Filter is a direct-replacement for the following Refrigerator Filter Model Numbers:
04609890000, 09890, 46-9890, 4609890000, 469890, 5231JA2002, 5231JA2002A, 5231JA2002A-S, 5231JA2002B, 5231JA2002B-S, 9890, ADQ72910901, ADQ72910902, ADQ72910907, EFF-6005A, GEN11042F-08, GEN11042FR-08, LT500P, LT-500P, PS2487038, SGF-LA22, WF-290, WF290, WSL-1, L197WFS, 46-9890, EL-1, OPFL-RF300, FilterLogic FFL-150L, FFL150L
Suits the following Fridge Models:
LSC26905TT, LSC21935SB, LSC21935SW, LSC21935TT, GR-P257STB, GC-P197WFS, GR-L247NS, GR-L247N, GR-L247NI, GC-L197STF, GC-L197NFS, GR-L207NI, GC-B197NFS, GC-B197WFS, GR-B247WVS, GR-D267DTU, GR-G227TVS, GR-L207EQ, GR-L207NIS, GR-L207WV, GR-L247ER, GR-L247NSS, GR-L247TS, GR-L247TSS, GR-L247WSS, GR-L247WV, GR-L247WVS, GR-L257NI, GR-L257STS, GR-P257STS, GR-P257SVB, GR-L207WVS, GC-L197WFS, GWL227STS, GR-L258DS, GC-P197NFS
*Fits LG refrigerators with a short round filter.
*Fits any refrigerator that uses the LT500P filter
*Simple quarter turn cartridge change is quick and easy
5231JA2002WF Operating Specification:
Flow Rate: 1.9 lpm
Operating Temperature: min 0.6oC / max 37.8oC
Operating...
