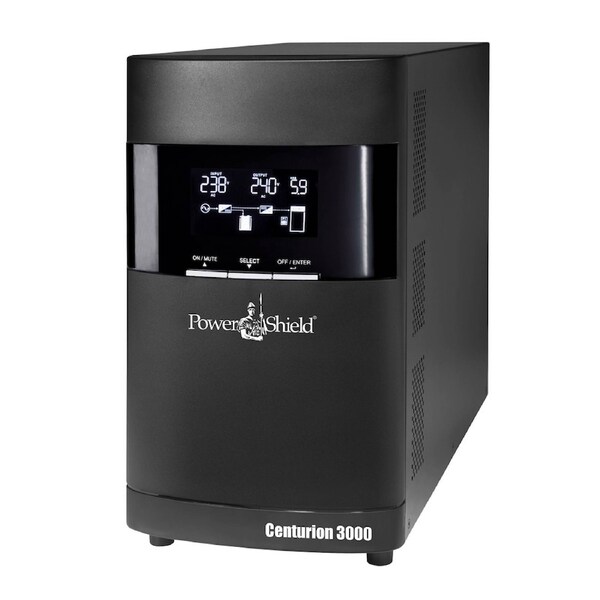

POWERSHIELD CENTURION UPS 3000VA 2700W LCD USB C19(1) AU OUTLET(4) 15AMP 2YR
The Centurion is a True Online Double Conversion UPS designed to provide comprehensive power protection
for critical equipment. Versatile software management and hardware options offer the flexibility to build up
a power protection solution to fit any application.
Meticulously developed by PowerShield engineers to be a world leading technology UPS, the Centurion Tower
addresses absolutely all requirements and features as has been demanded by the sophisticated Australian
power consumer and hence stands in a class of its own, as a world leading UPS technology
Applications that require remote connectivity
Feature:
True Online Double Conversion
Wide input voltage range
Input power factor correction 0.98
50Hz/60Hz frequency converter mode
Programmable power outlets
Emergency power off function (EPO)
Optional Eco-mode operation for energy saving
Generator compatible
Backup time for all models is easily extended by simply plugging additional battery banks
Battery banks are available with internal charger to enable fast recharge even with large battery banks
USB, RS232, SNMP and AS400 multiple communications available
Extendable maintenance bypass available for all models
N+X parallel redundancy available for 6K/10K model
Capacity 3000VA / 2700W
Topology True online double-conversion
Nominal Voltage 200 / 208 / 220 / 230 / 240VAC
Voltage Range 110-300VAC 5% at 50% load 160-300VAC 5% at 100% load
Frequency Range 40Hz-70Hz
Output Voltage 240VAC (200 / 208 / 220 / 230 / 240VAC - Selectable)
Frequency Range (Synchronized Range) 47-53Hz or 57-63Hz (Auto detect)
Frequency Range (Batt Mode) 50Hz 0.1Hz or 60Hz 0.1Hz
Voltage Regulation 1%
Current Crest Ratio 3:1
Harmonic Distortion > 2% THD (linear load) : > 4% THD (non-linear load)
AC Mode to Batt Mode zero
Inverter to Bypass 4ms (typical)
Waveform (Batt Mode) Pure Sinewave
IEC Outlet 15A, C19 x 1
AU Outlet 4
AC Mode 91%
ECO Mode 98%
Battery Mode 90%
Battery Type 12V*9AH(x6)
Typical Recharge Time 4 hours recover to 90% capacity
Charging Current (max) 1.5A
Full Protection 1248 Joules / 39000Amps
Interface USB and RS232 as standard. Intelligent slot for PSSNMPV4 or PSAS400 dry contact or PSMBUS
Software PowerShield(R) NetGuard(R) supports Windows, Linux, Unix & Mac
HID Supports Windows, Apple, Linux, NAS and various industrial controllers
LCD Display/Alarm UPS Status, Load Level, Battery Level, Input/Output Voltage, Battery Time Remaining and Fault Indicators
Audible Alarm Battery Mode, Low Battery, Overload, Fault
Dimension L x W x H (mm) 425 x 190 x 335
Weight Nett/Gross (kg) 28
Safety/EMC EN62040 -1 -1 2003, IEC 60950 -1 -1, EN62040-2 2006
RoHS Directive 2011/65/EU
Warranty 2 years
