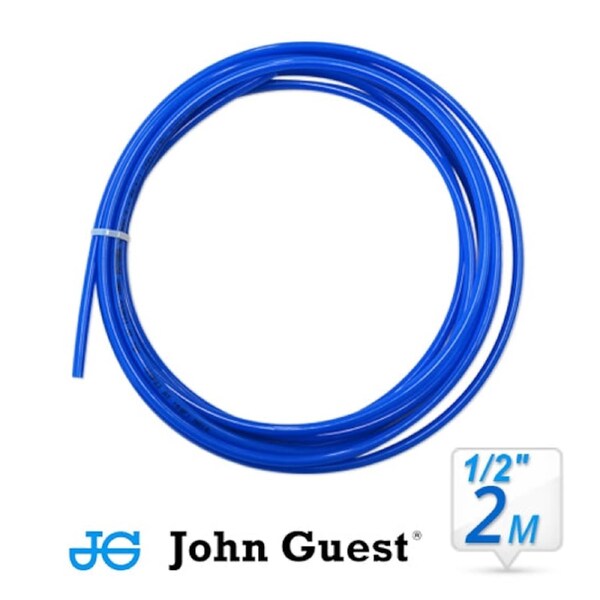

John Guest 1/2" Hose Tubing High Pressure Blue 1 Metre 2 Metres
John Guest 1/2" Tubing High Pressure Blue 1 Metre
Sold in 1 Metre Lengths.
John Guest High Pressure Food Grade Premium Grade Water Filter Tubing.
Suit 1/2" Speedfit Quick Connect
Tested at over 200psi
1/2" OD suitable for Water Filtration Systems and plumbing applications.
JOHN GUEST High Pressure LLDPE 1/4" BLUE TUBE - Price is $1.65 per Metre Unit
Tube Supplied in ONE PIECE according to number of Metres ordered.
The John Guest LLDPE range of plastic tubing is produced in Linear Low Density Polyethylene for cold and intermittent hot water applications.
John Guest tubing provides the benefits of a wide range of temperature and pressure suitability, broad chemical compatibility and is made from non contaminating materials. Common applications are in water purification, water conditioners, ice makers, coffee machines and misting systems. LLDPE is more robust than traditional low or medium density polyethylene and is recommended for use with cold and intermittent hot water. John Guest tubing is made from FDA compliant materials and is NSF International certified. Manufacturered in the United Kingdom.
John Guest Polyethylene tubing is designed for use with John Guest Super Speedfit push-in fittings, John Guest Shut-Off Valves and virtually all standard tubing connectors.
Features
- Linear low density polyethylene
- Suitable for cold and intermittent hot water applications
- Broad chemical compatibility
- FDA and NSF certified
- Strong, flexible and robust
Specifications - LLDPE Tubing
Working Temperatures and Pressures - LLDPE
| Tube OD |
Tube ID |
Tube Metric OD |
Tube Metric ID |
||
| 1/4" | x | 0.170" | 6.35 mm | x | 4.32 mm |
| 230 psi @ 70oF 15 bar @ 20oC |
150 psi @ 70oF 10 bar @ 20oC |
||||
| 120 psi @ 150oF 8 bar @ 65oC |
90 psi @ 150oF 6 bar @ 65oC |
1 Bar = 14.5 psi (approx.)
Maximum Working Temperature 150oF at pressures shown in the chart above. For temperatures above 150oF customers should refer to John Guest Technical Help Desk.
Please note maximum pressure rating for a 'system' depends on the lowest rated component, e.g. most John Guest fittings have a different rating than the tube ratings shown above.
Burst pressures are approximately 3 times the maximum working pressure.
LLDPE is not recommended for mineral oils, gases and fuels or high pressure compressed air / pneumatic systems.
Tube Tolerances
| 1/4" to 1/2" | +0.001/-0.004" |
| 4 mm to 6 mm | +0.05/-0.07mm |
Food Quality
All these fittings are produced in Food and Drug Administration (FDA) compliant
materials and are therefore recommended for food quality applications.
NSF Certifications NSF 14, NSF 51, NSF 61
